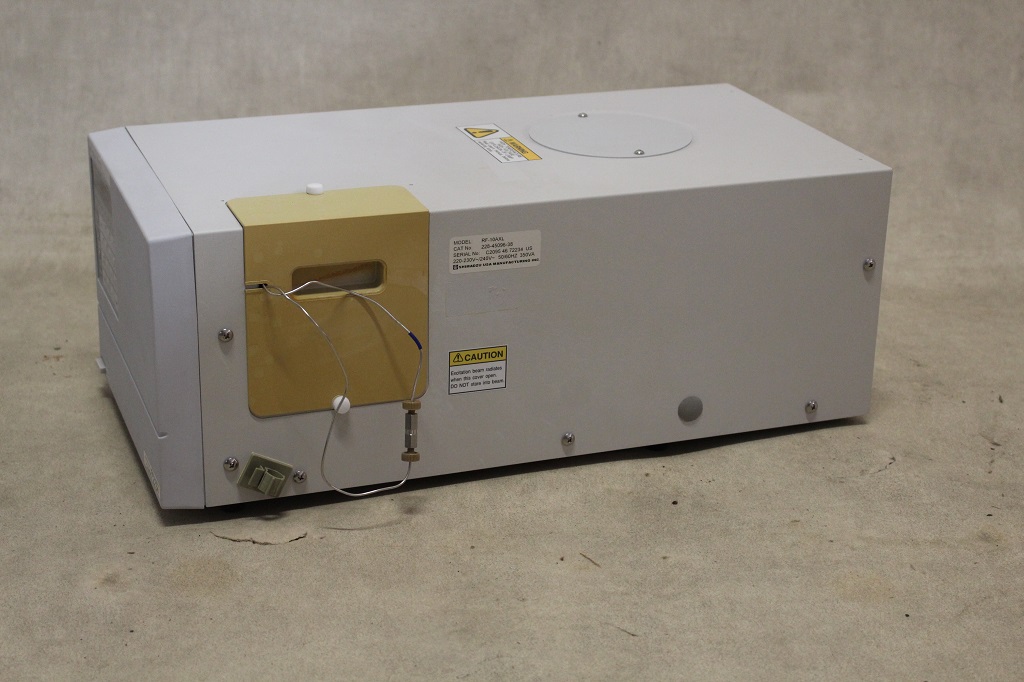

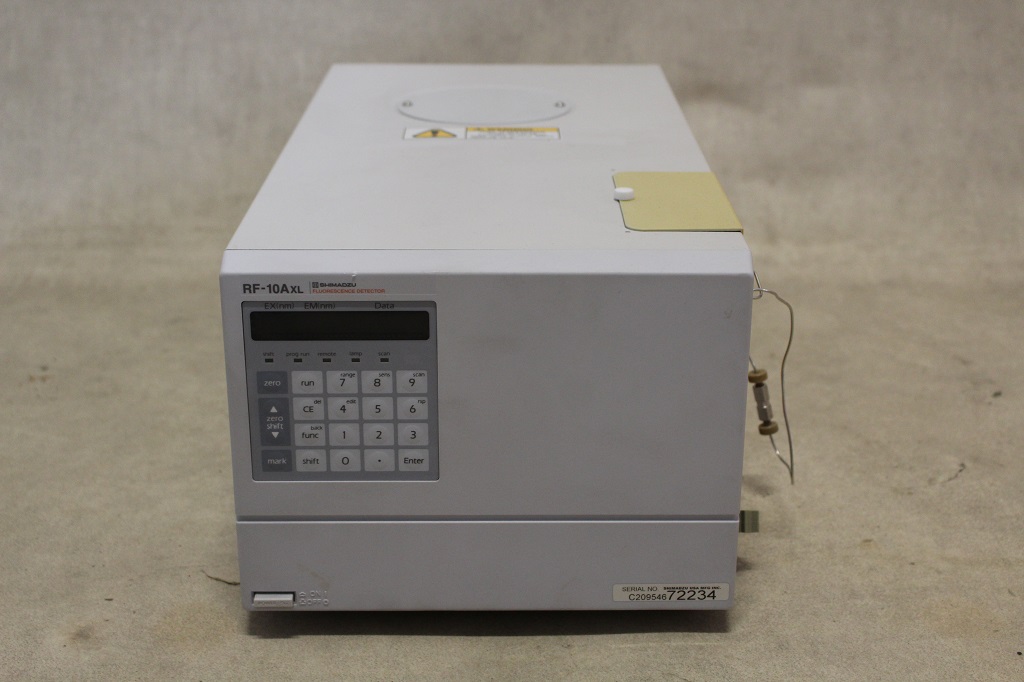

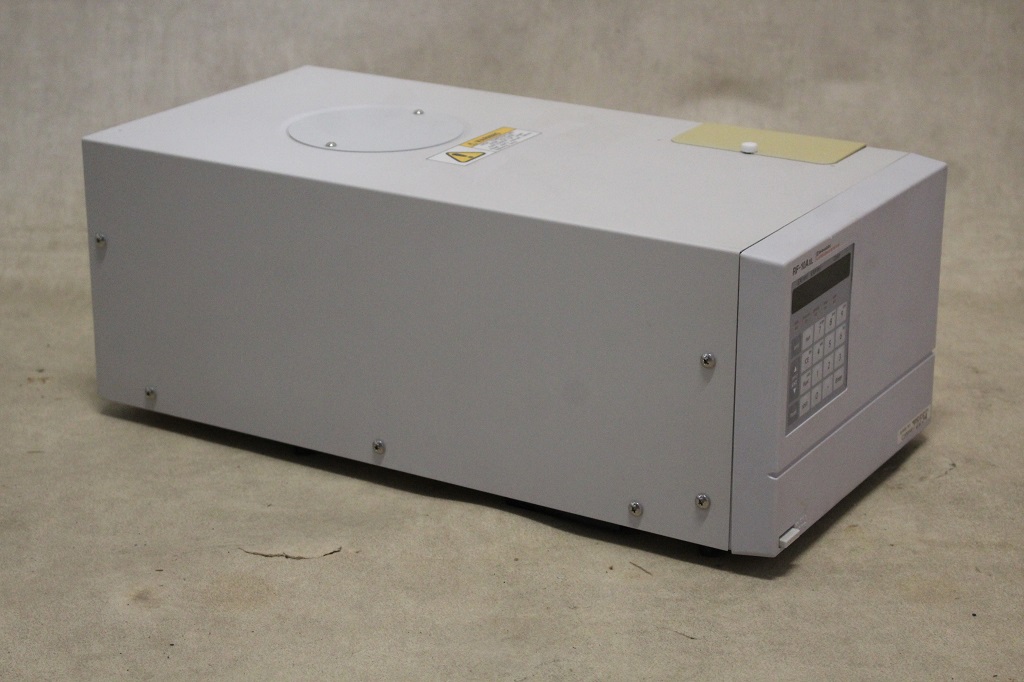

The Shimadzu RF-10AXL fluence detector offers a refined optical design for the ultimate in high-sensitivity detection. It also offers an improved Raman signal-to-noise ratio of 300 for excellent sensitivity, improved wavelength accuracy of ±2.0 nm for strong inter-unit consistency. A newly developed ratio system compensates for fluctuations in lamp intensity and ensures excellent noise characteristics.
Light Source: High precision Xenon lamp.
Excitation/Emission Monochromators: Concave, flamed holographic lattice monochromators
Measuring wavelength range: 200 – 650 nm
Spectral bandwidth: 15 nm on both the excitation and emission sides
Wavelength accuracy: ±2 nm
Wavelength reproducibility: ±0.2 nm
Sensitivity: The S/N ratio is 300 for the Raman line of distilled water (350 nm excitation wavelength and 1.5 sec time constant)
Detector: Photomultiplier
Cell (volume, pressure, material): 12 =L, approx. 20kgf/cm2 (2MPa) SUS316, quartz, PTFE
Wavelength scanning: Possible for both excitation and emission wavelengths.
Time Programming: Wavelength parameters can be programmed in up to 32 steps
Dimensions (WxDxH): 260 x 520 x 205 mm
Weight: 17kg
