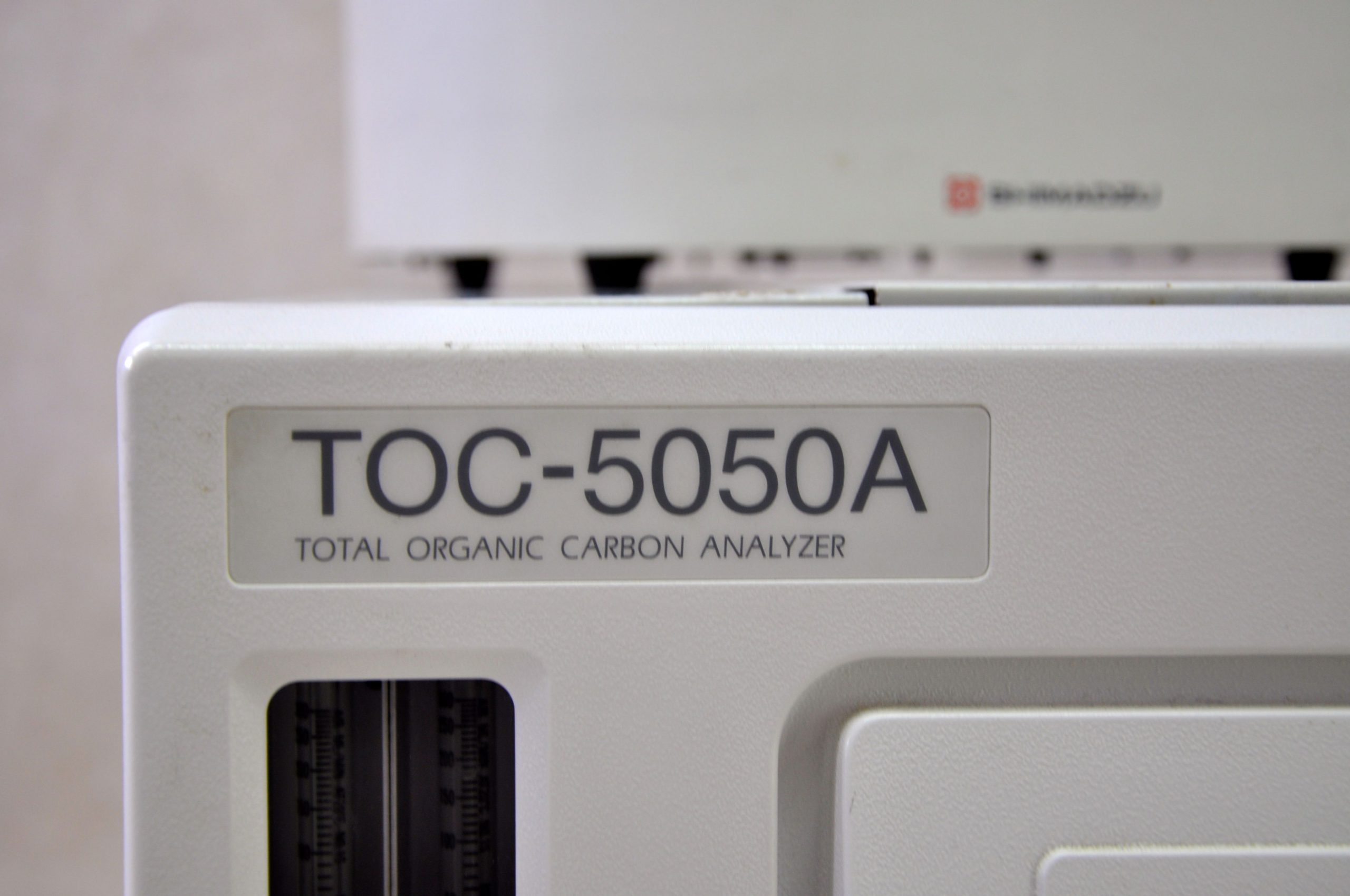

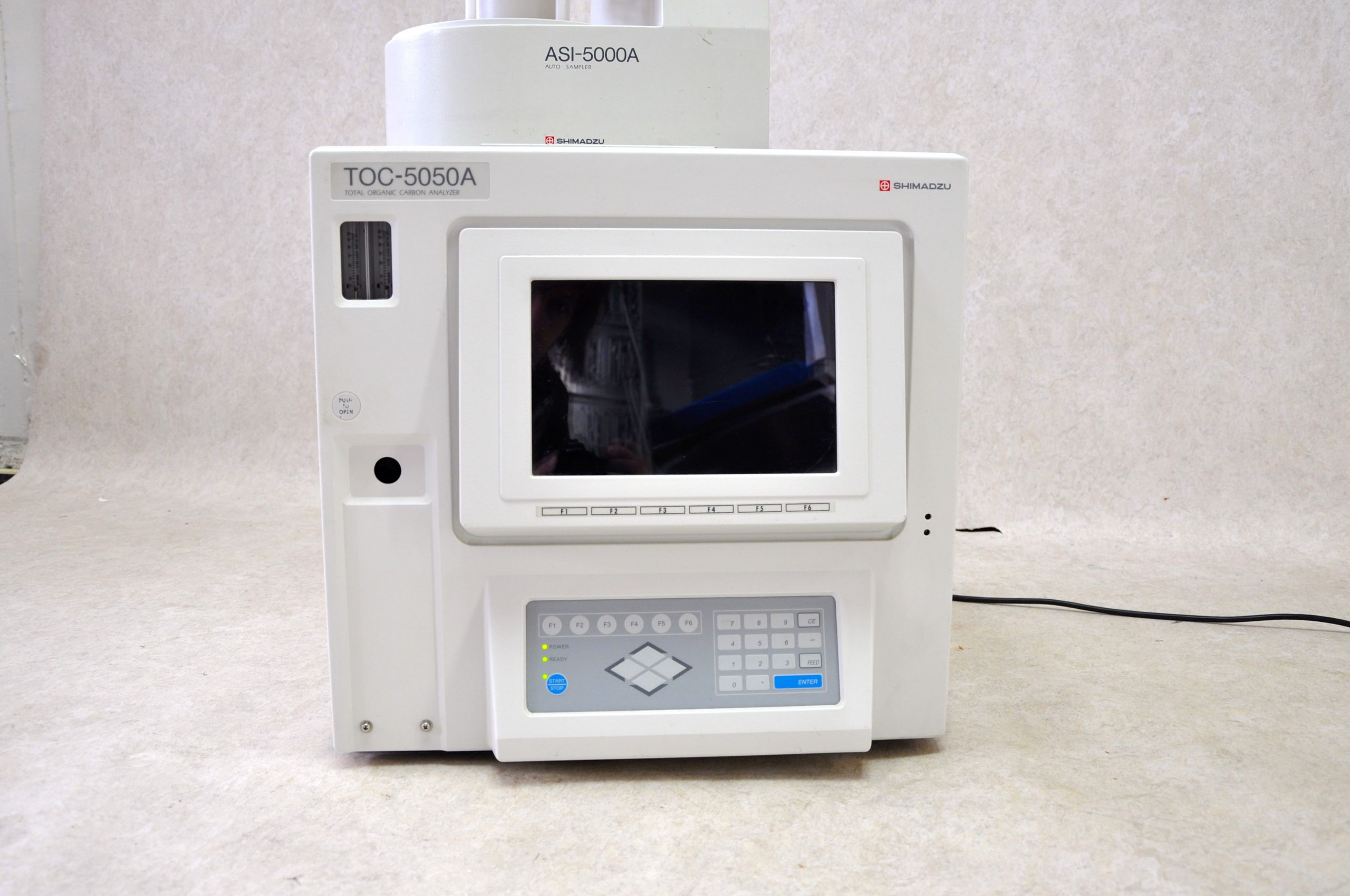

Shimadzu TOC-5050A Analyzer

Used Shimadzu TOC analyzer, type TOC-5050A.

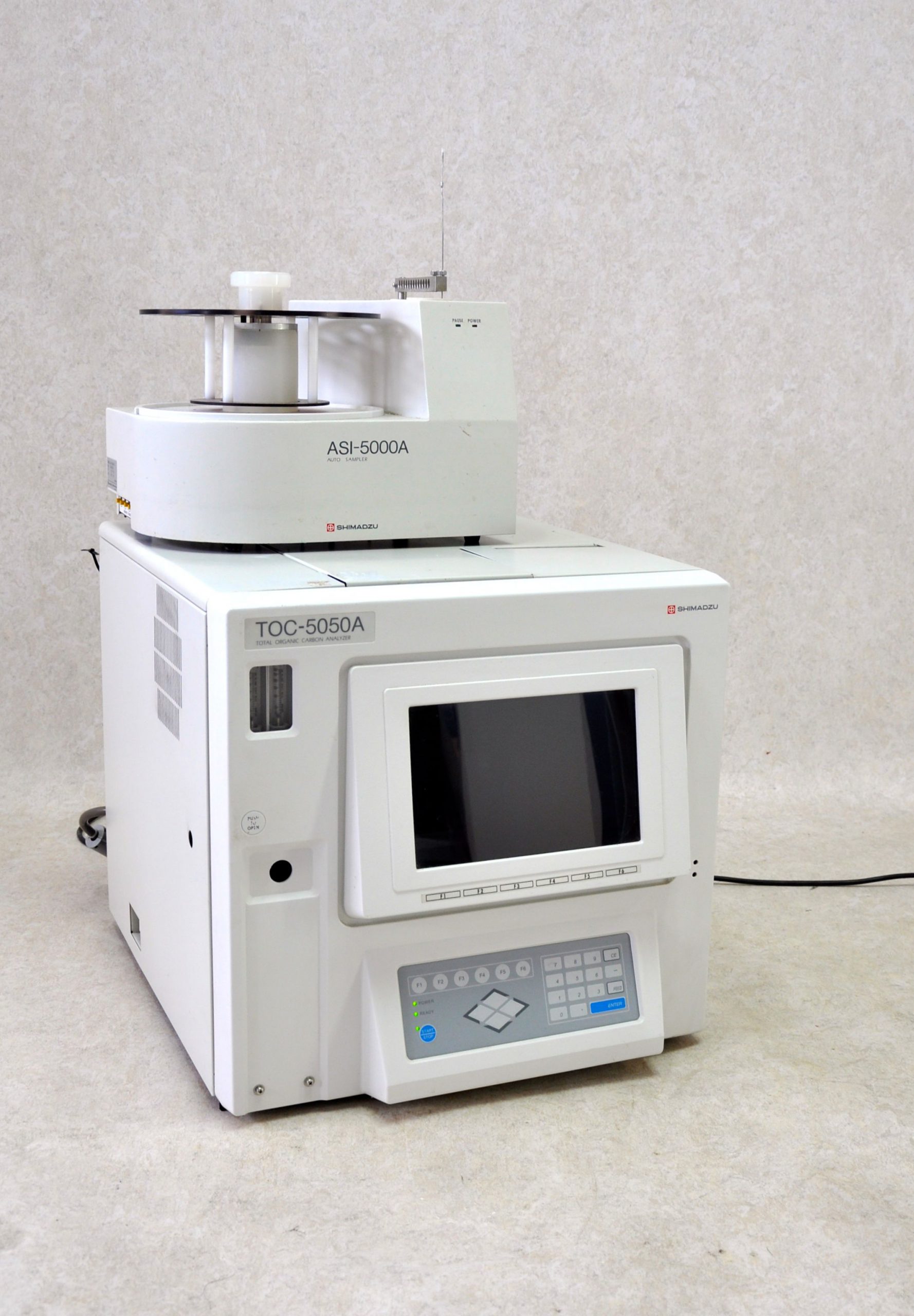

Including the Shimadzu ASI-5000A.
Please note! Display isn’t functioning! So testing isn’t possible.

TOC stands for Total Organic Carbon.
Non-purgable organic carbon is measured by acidifying samples to a pH less than 2.0 and sparging with CO2 free air.
A combustion/non-dispersive infrared gas analysis method is employed.  High purity carrier gas, moistened by a humidifier, flows at a rate of 150 mL/min.
The sample is injected into a TC (Total Carbon) combustion tube, which has been filled with oxidation catalyst and heated to 680°C.
The sample is combusted or decomposed to CO2.
The combustion product is sent through an IC reaction vessel, cooled, dried by a dehumidifier and then sent through a halogen scrubber.
The NPOC component is detected for CO2 in a non-dispersive infrared gas analyzer (NDIR).
The peak area count is proportional to the NPOC concentration of the sample.

Technical specifications:
Voltage: 230Volt
Power: 5Amp

Specifications:
Temperature: 4 ° C – 80 ° C
Fan: 400-1200 rpm

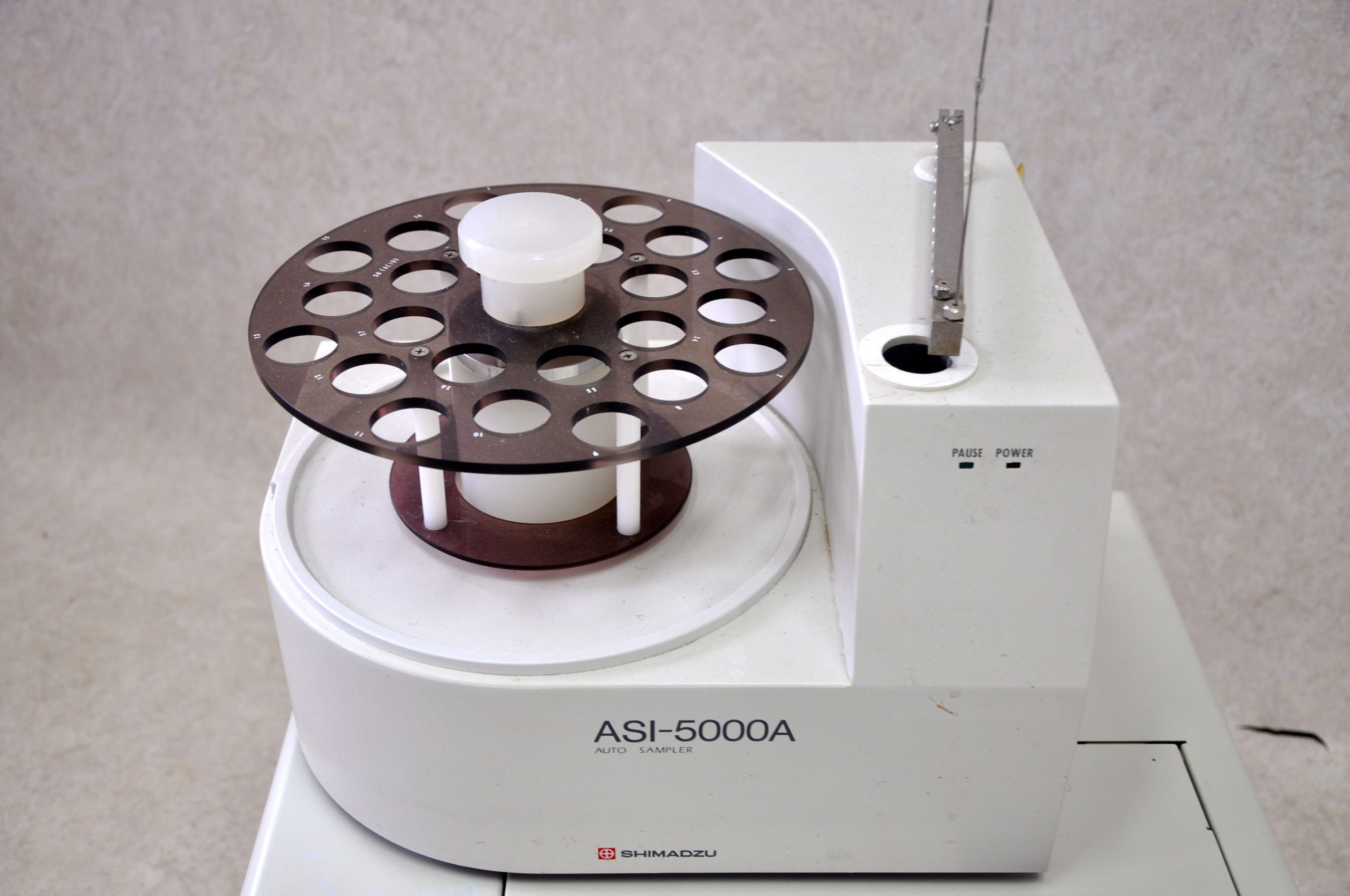

The ASI-5000A contains 24 places.

Dimensions TOC5050A (W) x (D) x (H): 47,5 x 53 x 47,5 cm
Dimensions ASI-5000A (W) x (D) x (H): 35,5 x 40 x 27cm

Spare parts only
