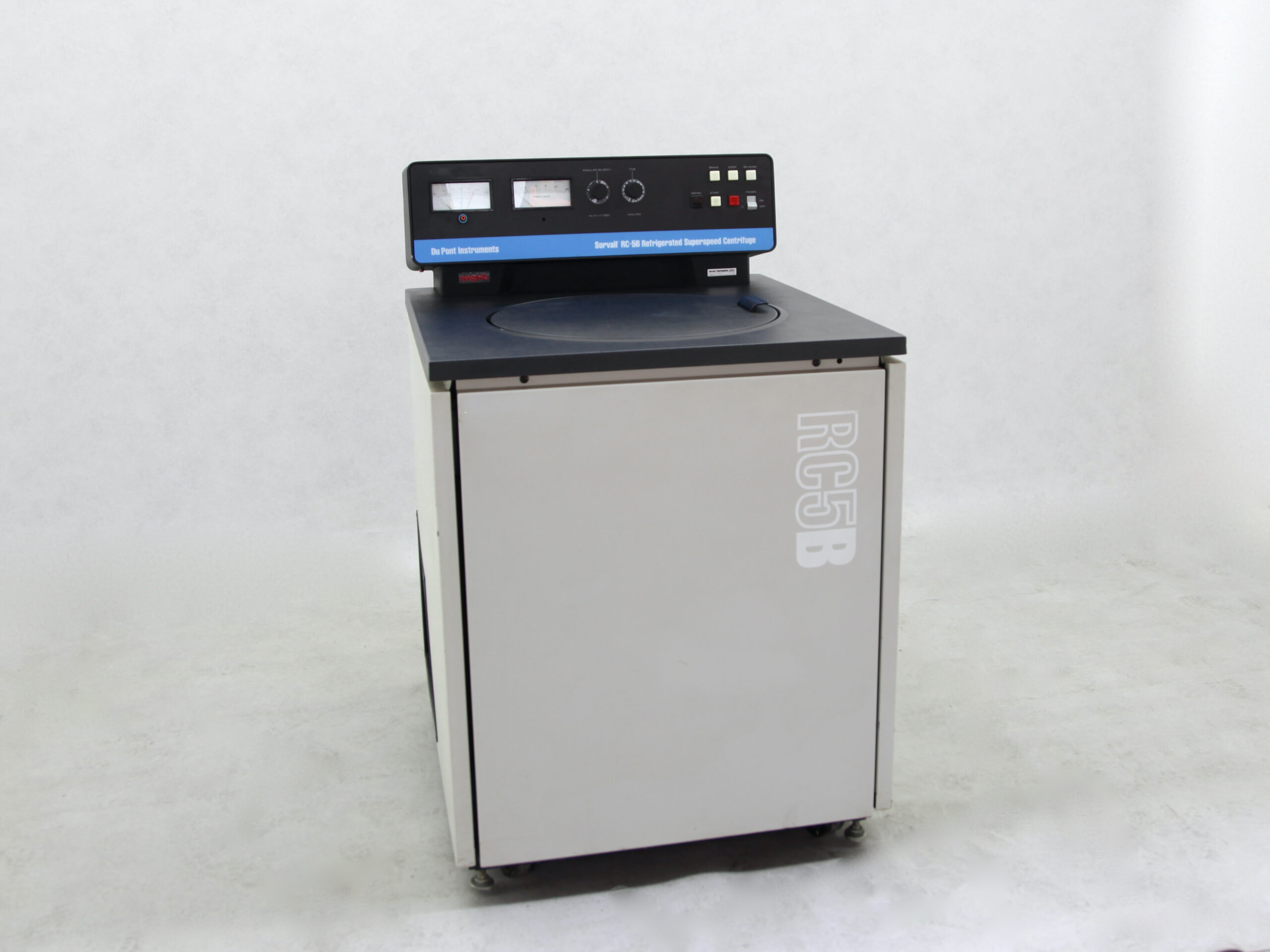

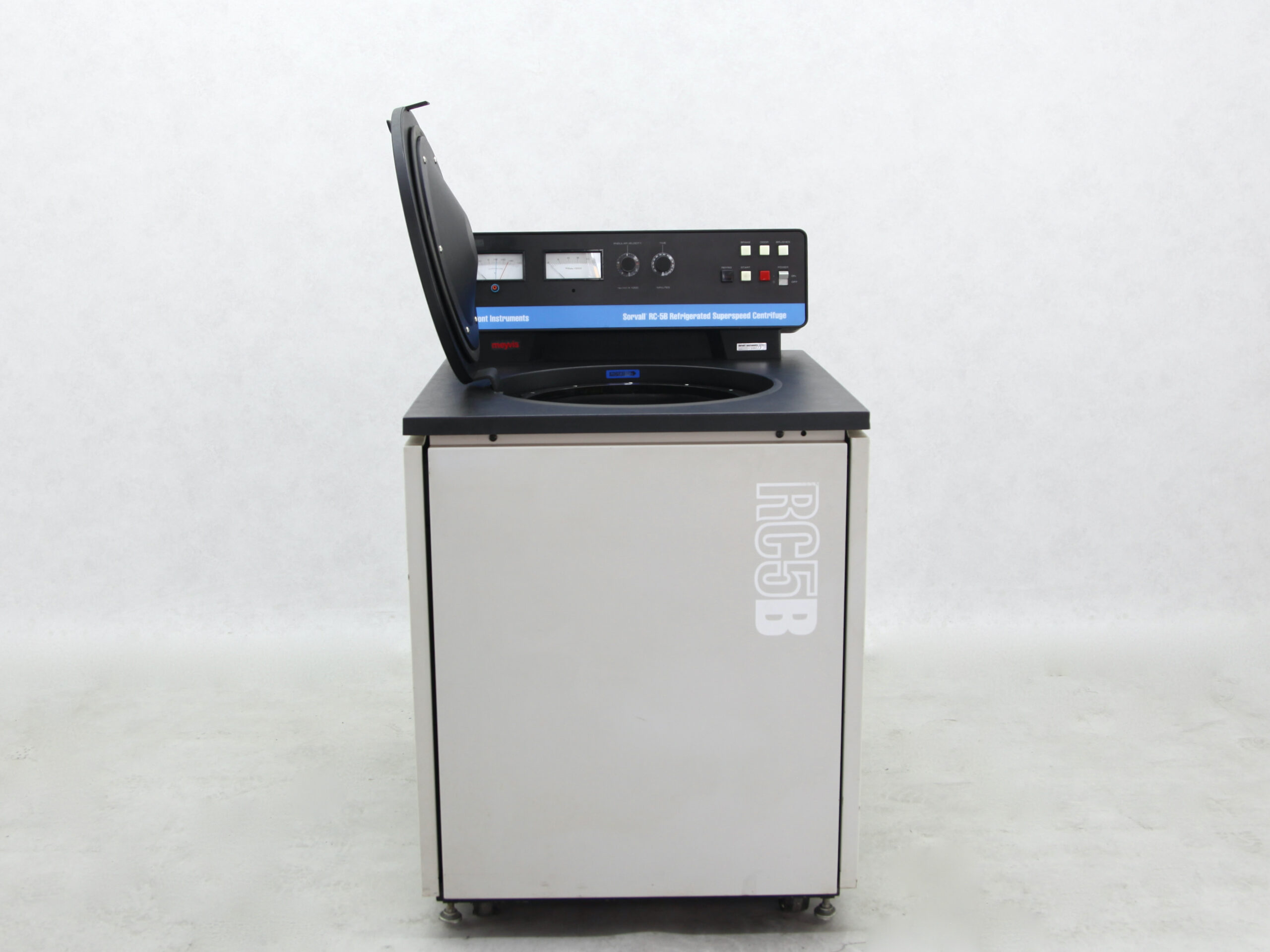

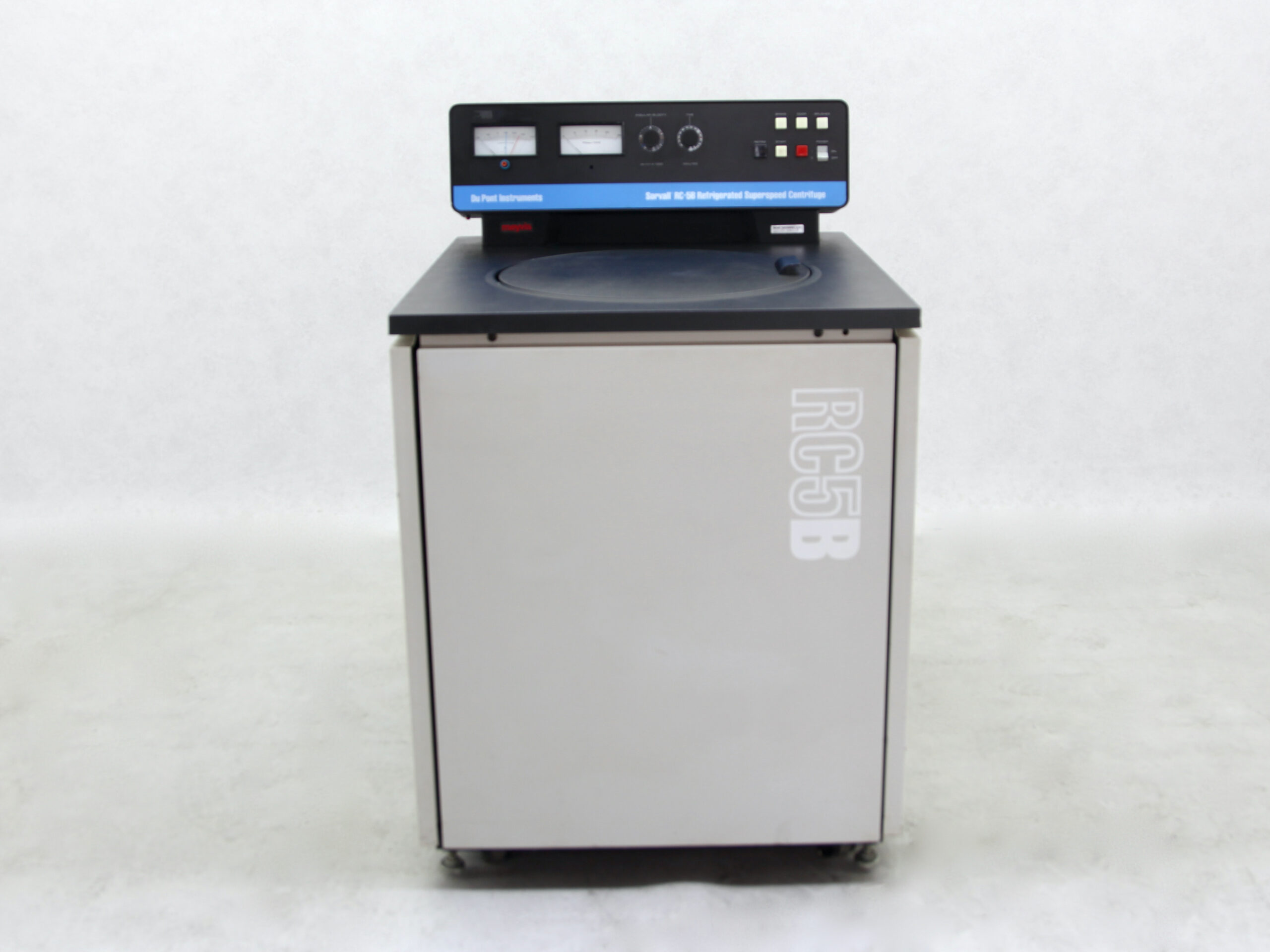

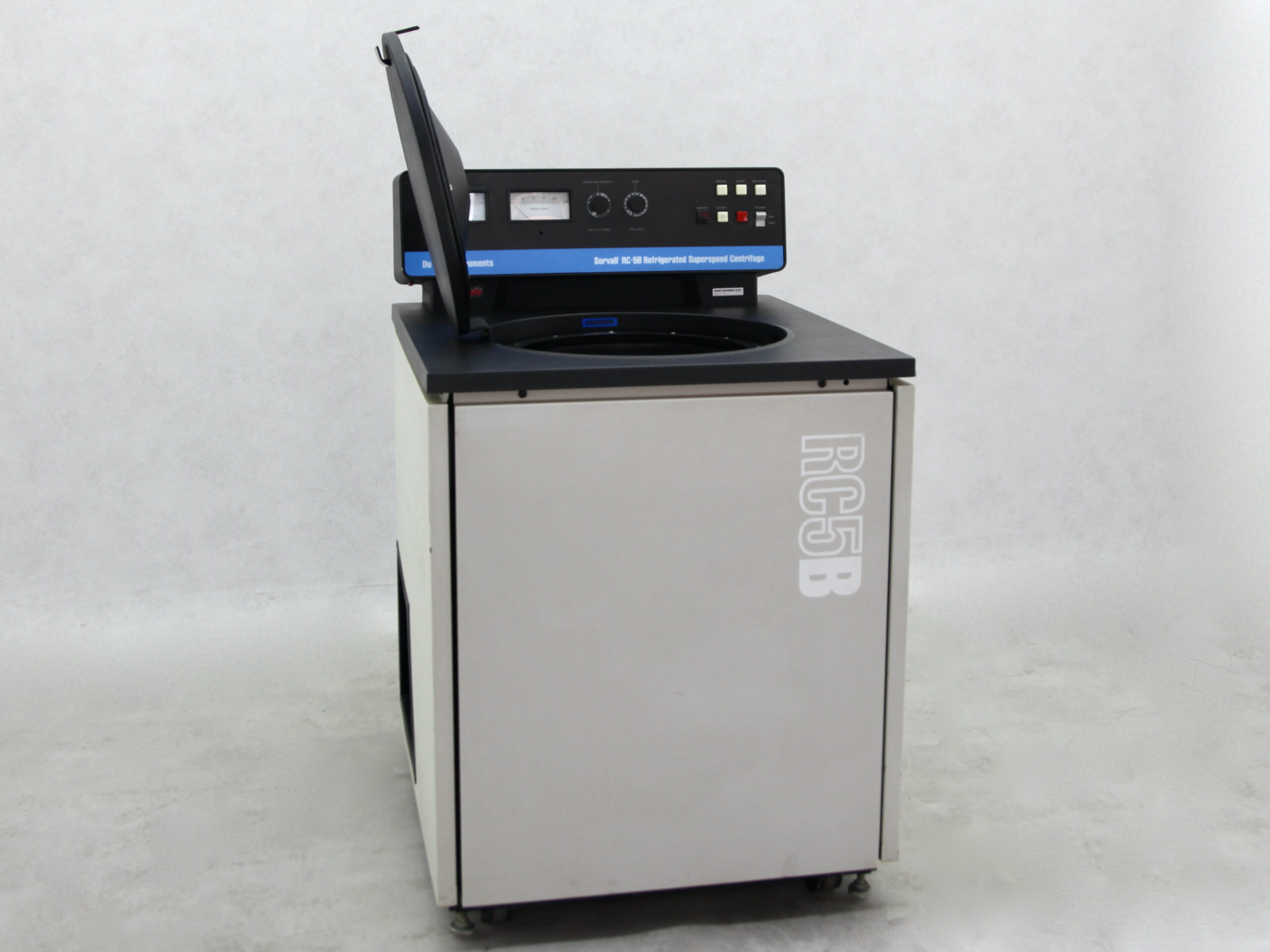

The RC-5B is a floor-model, refrigerated superspeed centrifuge that can be used at e speeds from 100 rpm to 21.000 rpm.
The centrifuge has a fan-cooled motor that is balanced and enclosed in an air-cooled silencer to ensure smooth, quiet operation over its full speed range an to promote long life for the brushes and bearings. The gyro-action centering drive accepts a variety of Sorvall rotors.

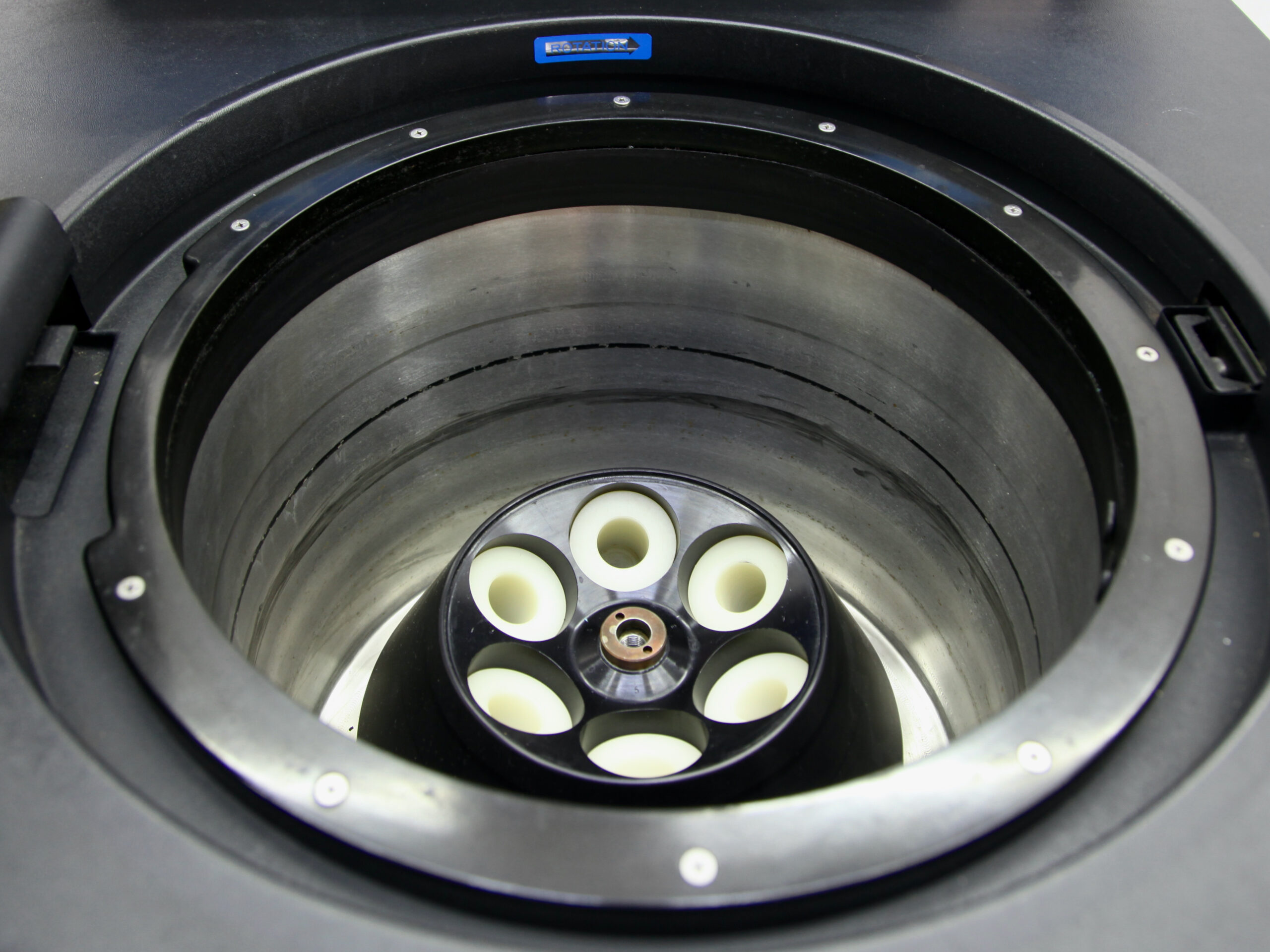

The refrigeration system is a low-temperature, hermetically-sealed unit consisting of a compressor, condenser, evaporator / rotor chamber and interconnecting tubing. During operation, the cooling system will maintain rotor compartment temperature withing 1 0C of setpoint.
Technical specifications:
Voltage: 220-240 V
Current: 30 A
Power: 4620 W
Maximum operating speed (depending on rotor speed): 21.000 rpm
Speed control accuracy: +/- 1% or 100 rpm of set speed, whichever is greater

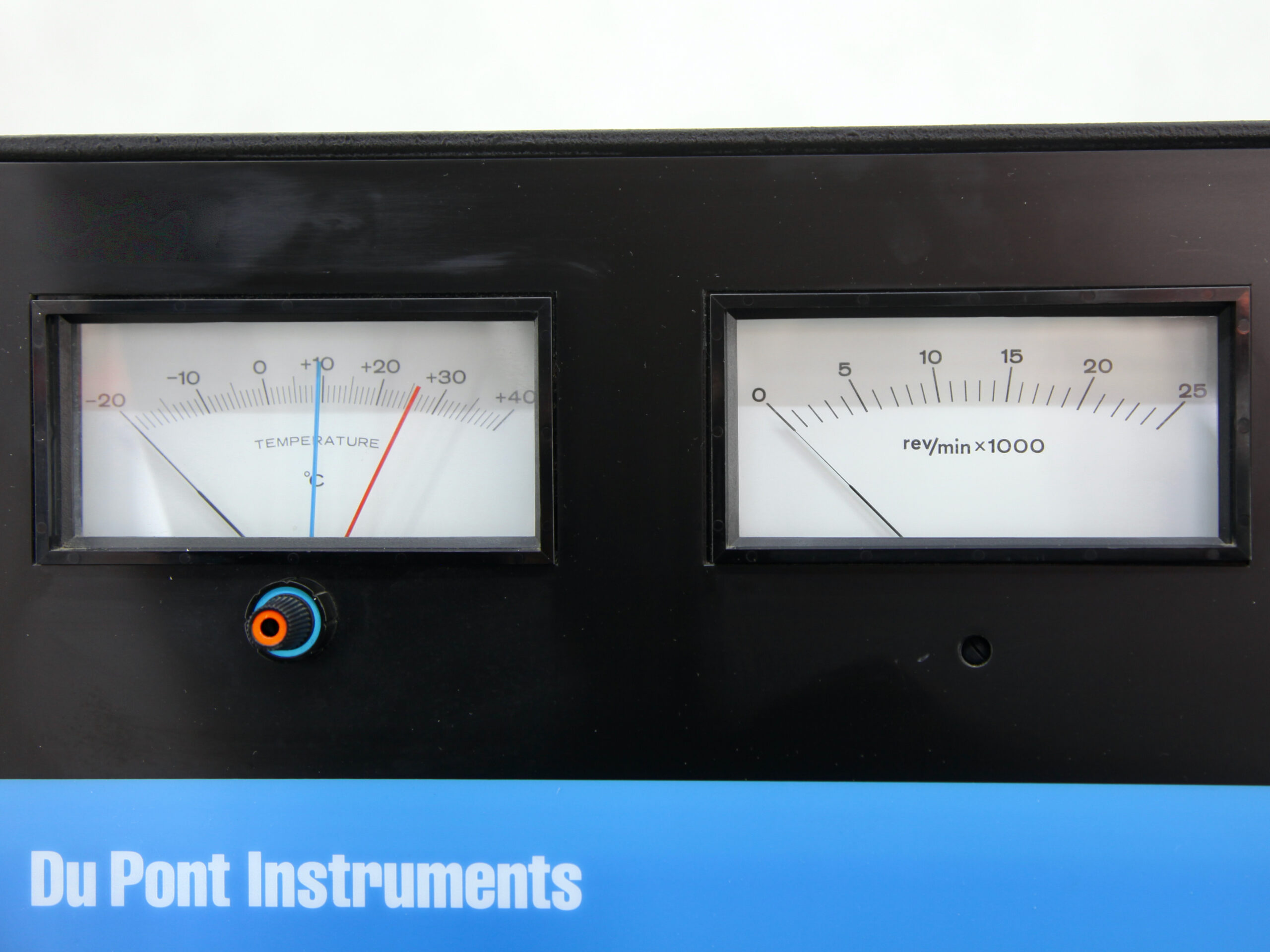

Temperature range: -20 oC to +40 oC (at reduced speed)
Temperature control range: +15 oC to 30 oC
Temperature accuracy: +/- 1 oC

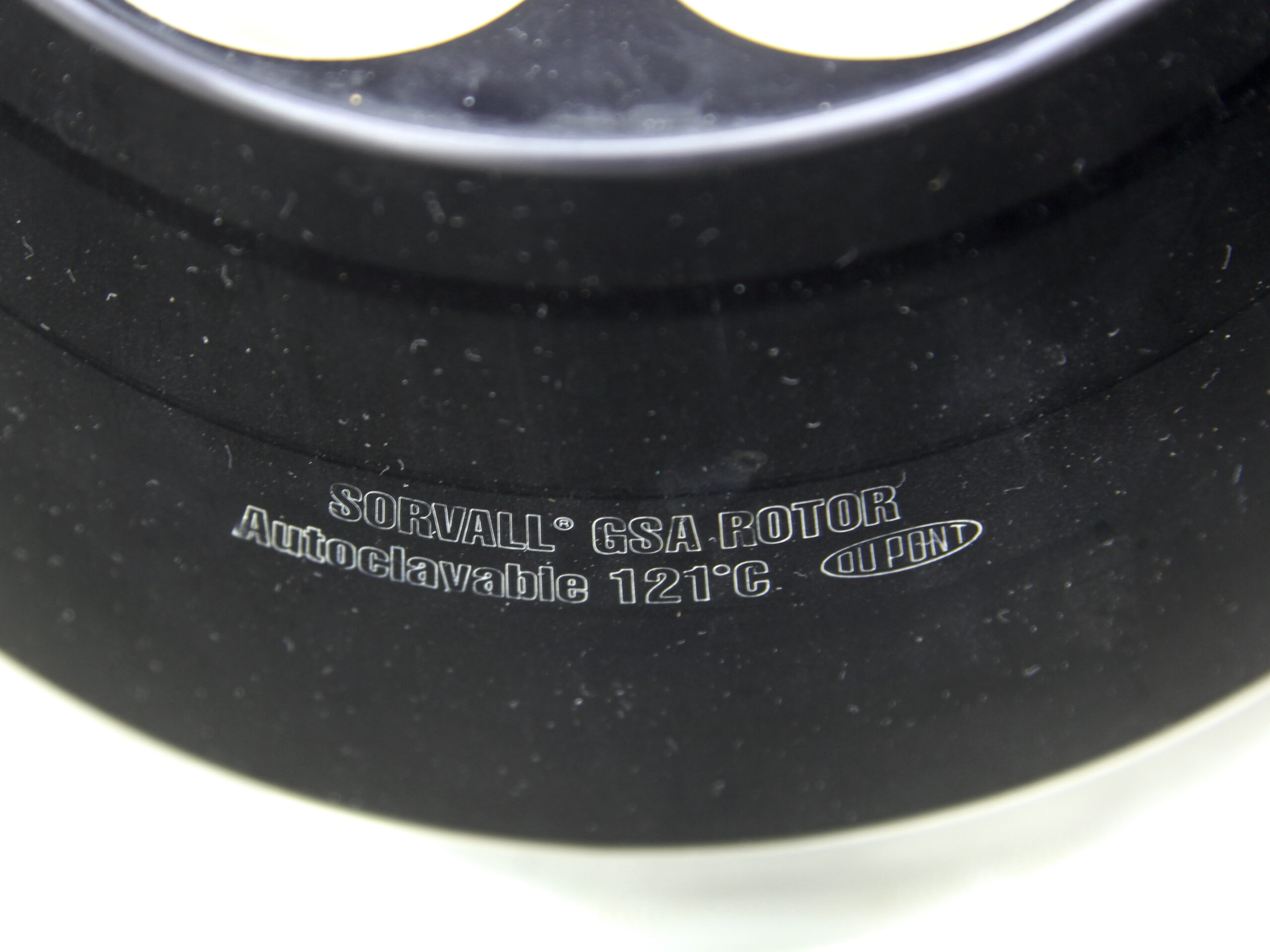

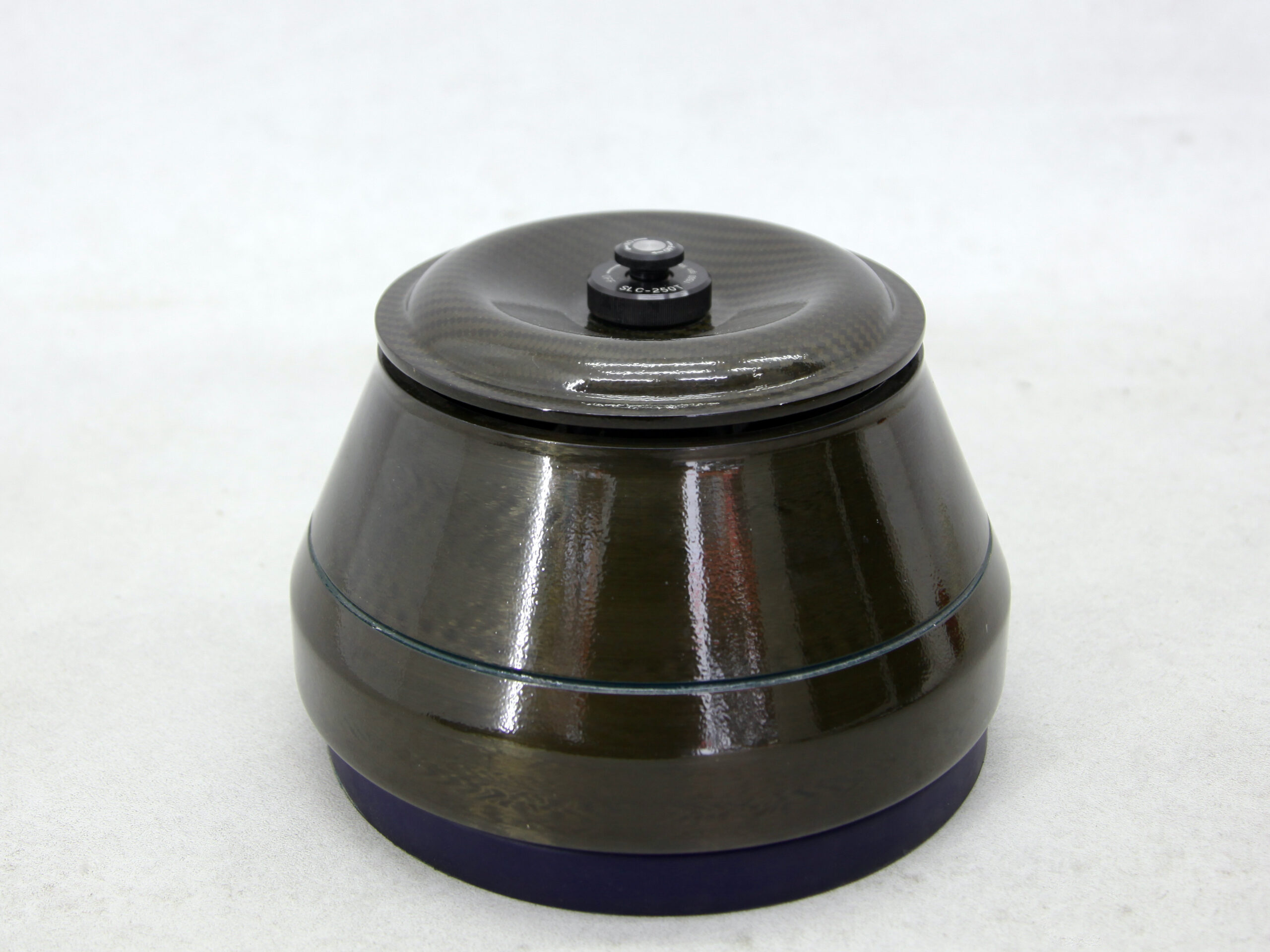

Rotor 1: type GSA, autoclavable 121 oC, max speed 13.000 rpm, max. RCF of 27.600 x g

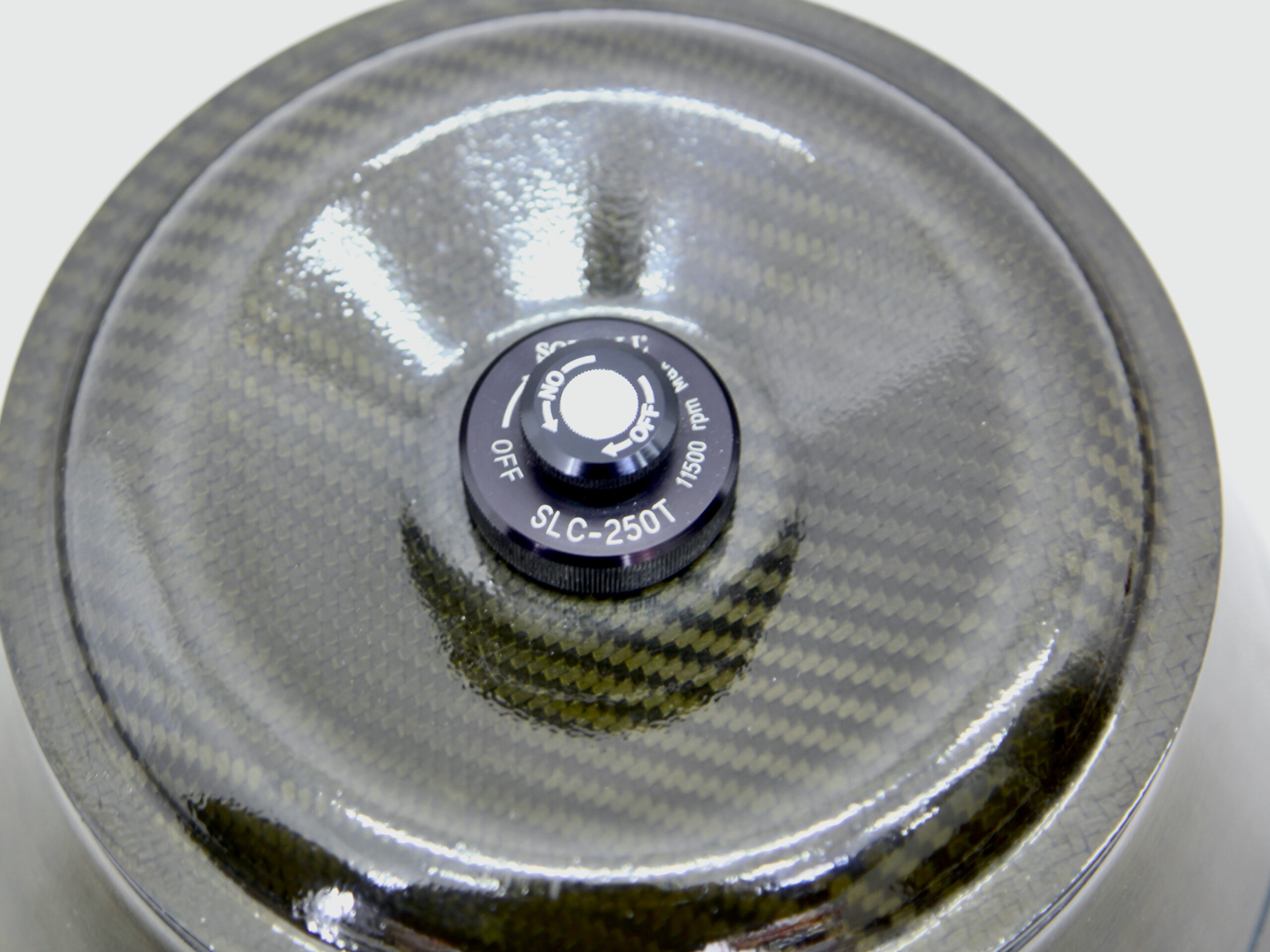

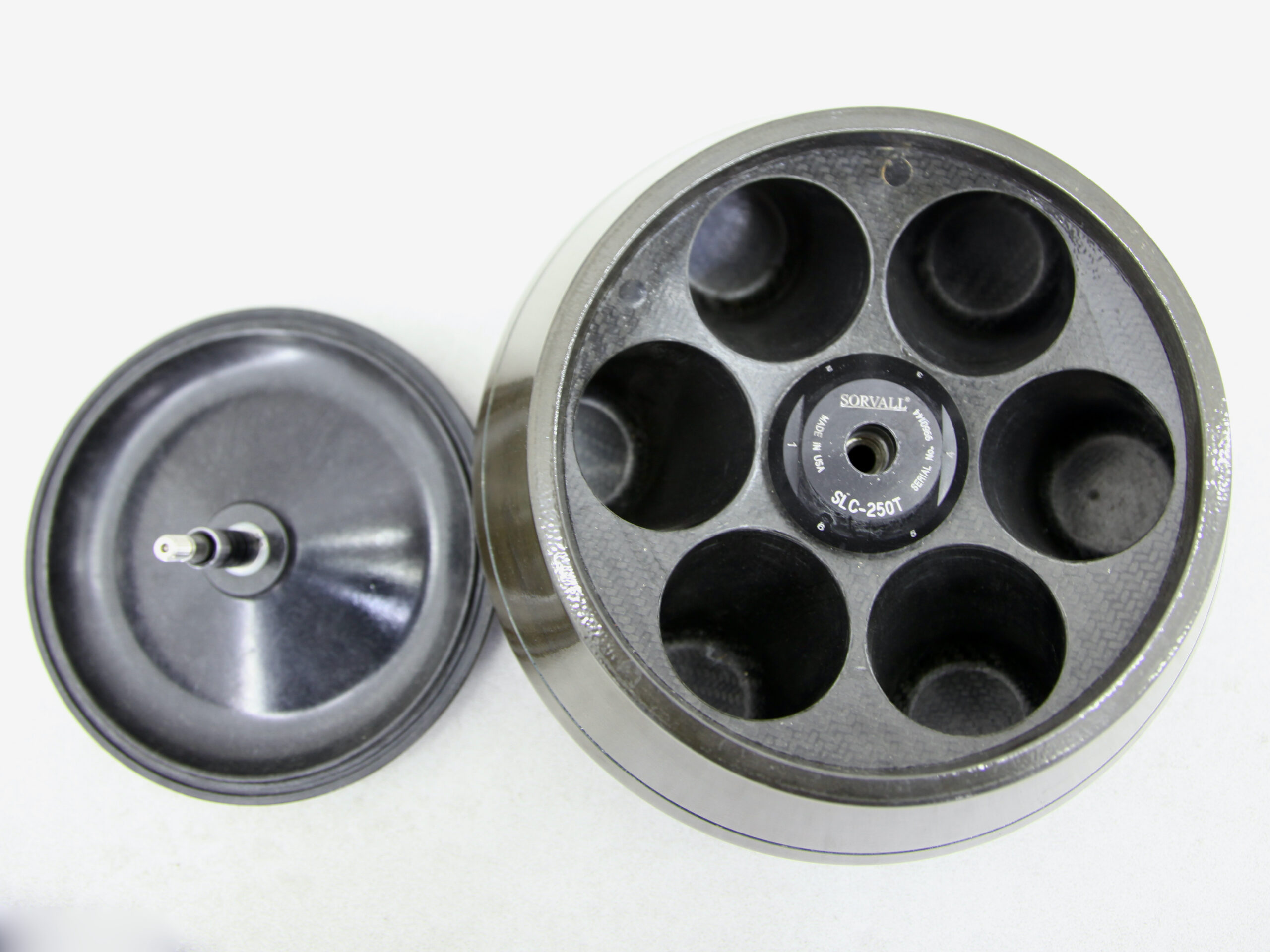

Rotor 2: type SLC-250T, max speed 11.500 rpm, max. RCF of 20.240 x g
Outer dimensions (W) x (D) x (H): 760 x 990 x 1210 mm
Inner dimensions (W) x (D) x (H): x x mm
Weight: 308 kg
