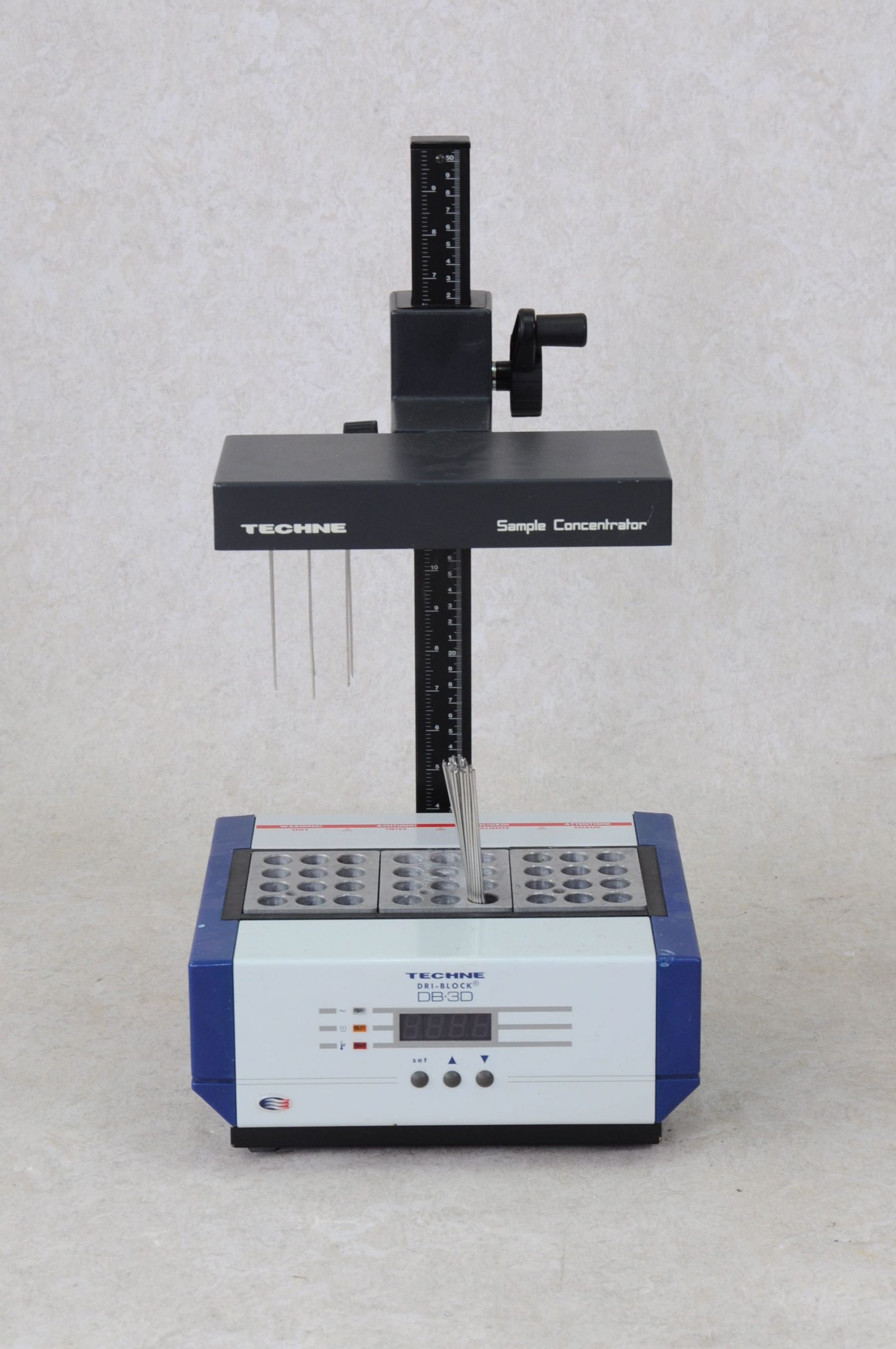

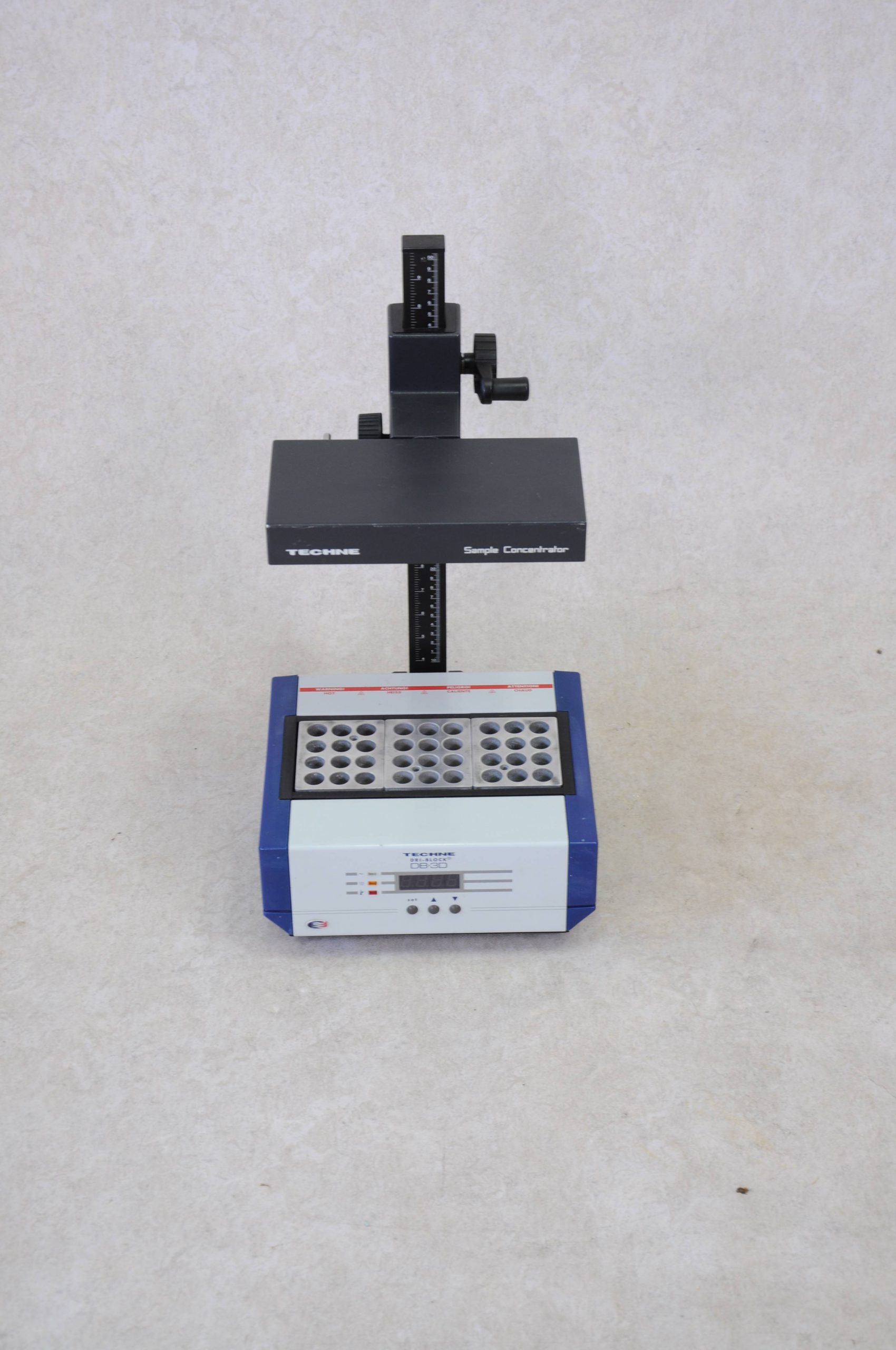

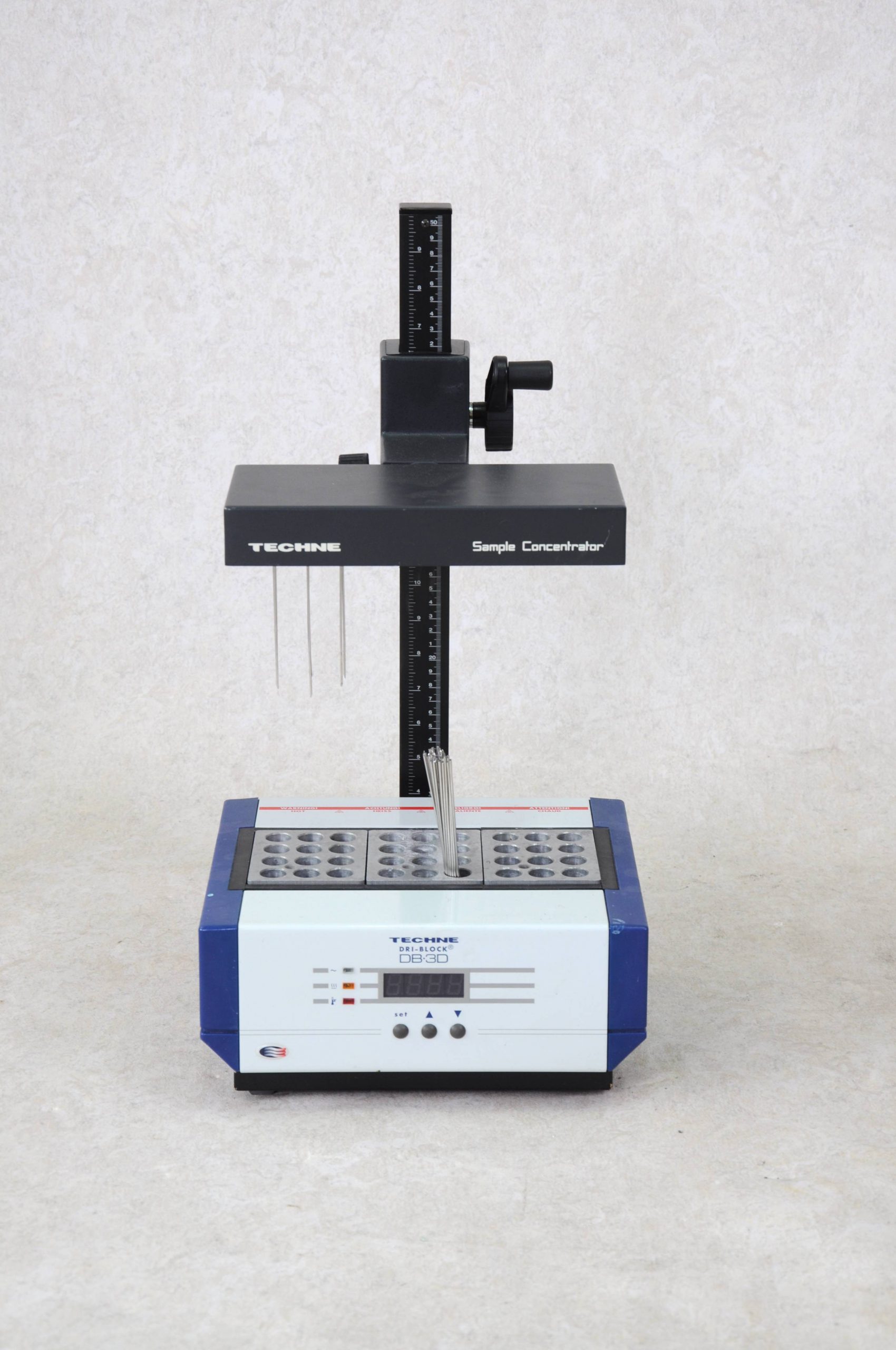

Techne DRI-Block evaporation device, type DB-3D.
Technical specifications:

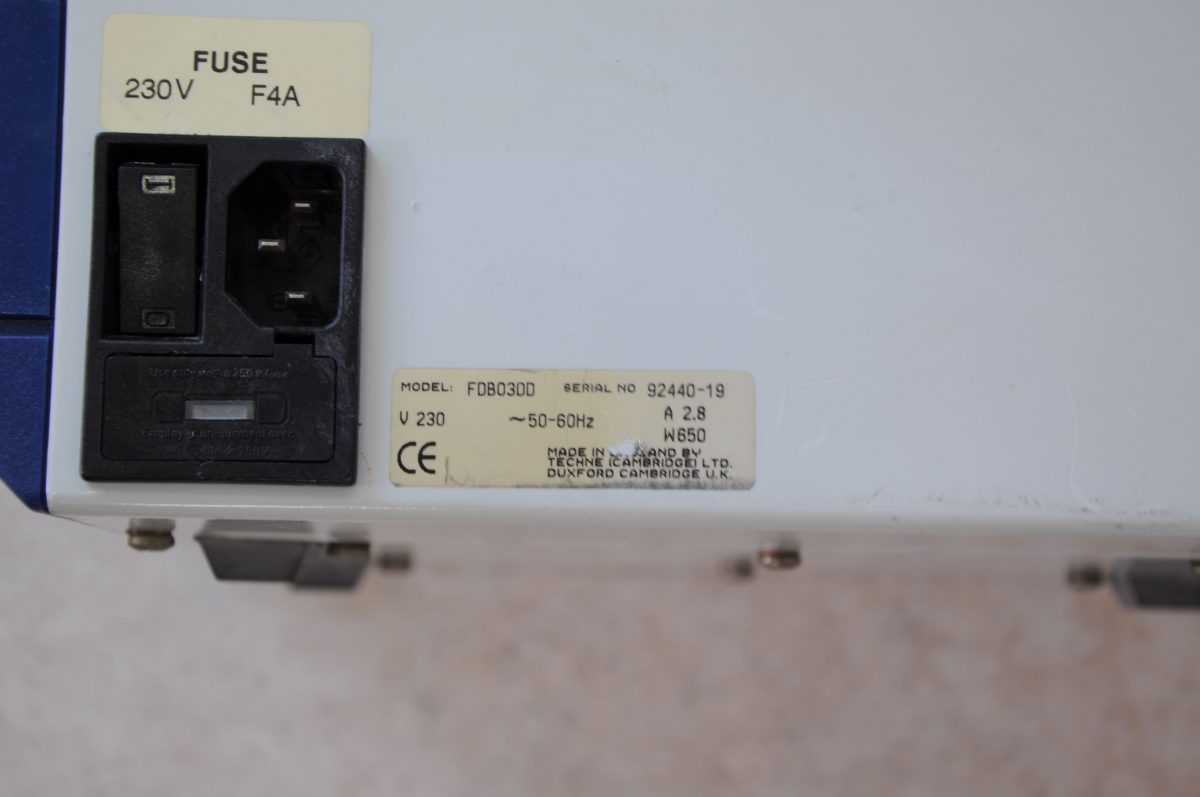

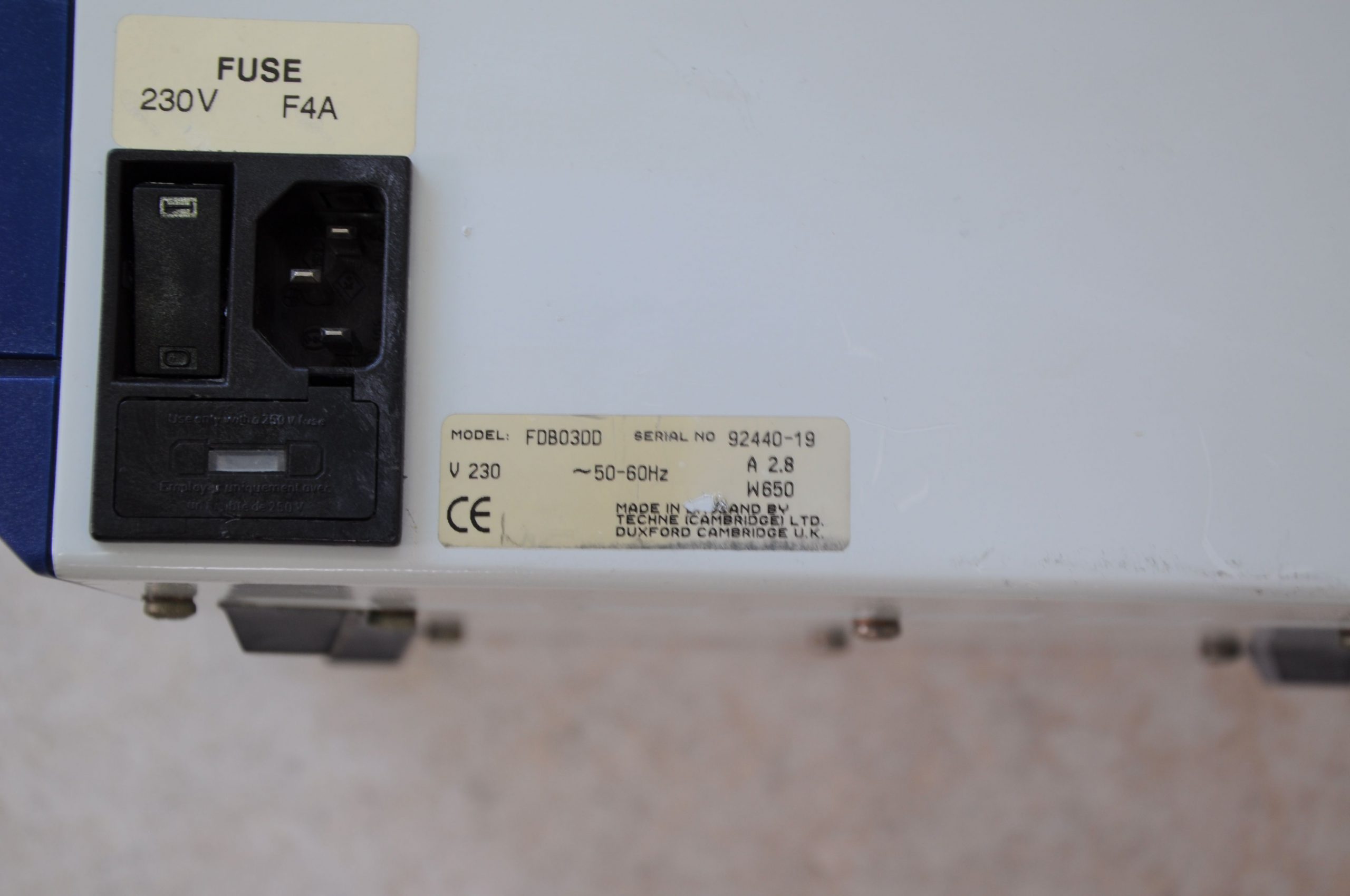

Voltage: 230V
Power: 650W
Current: 2.8 A
Maximum temperature: +200°C
Warm-up Time:
from +30°C to +37°C in 11 minutes
from +30°C to +56°C in 15 minutes
from +30°C to +200°C in 25 minutes
External dimensions (W) x (D) x (H): 28 x 24 x 11cm
Heat Block Dimensions (W) x (D) x (H): 9.5 x 22.5 x 5cm
Sample location: Ø 17mm per place

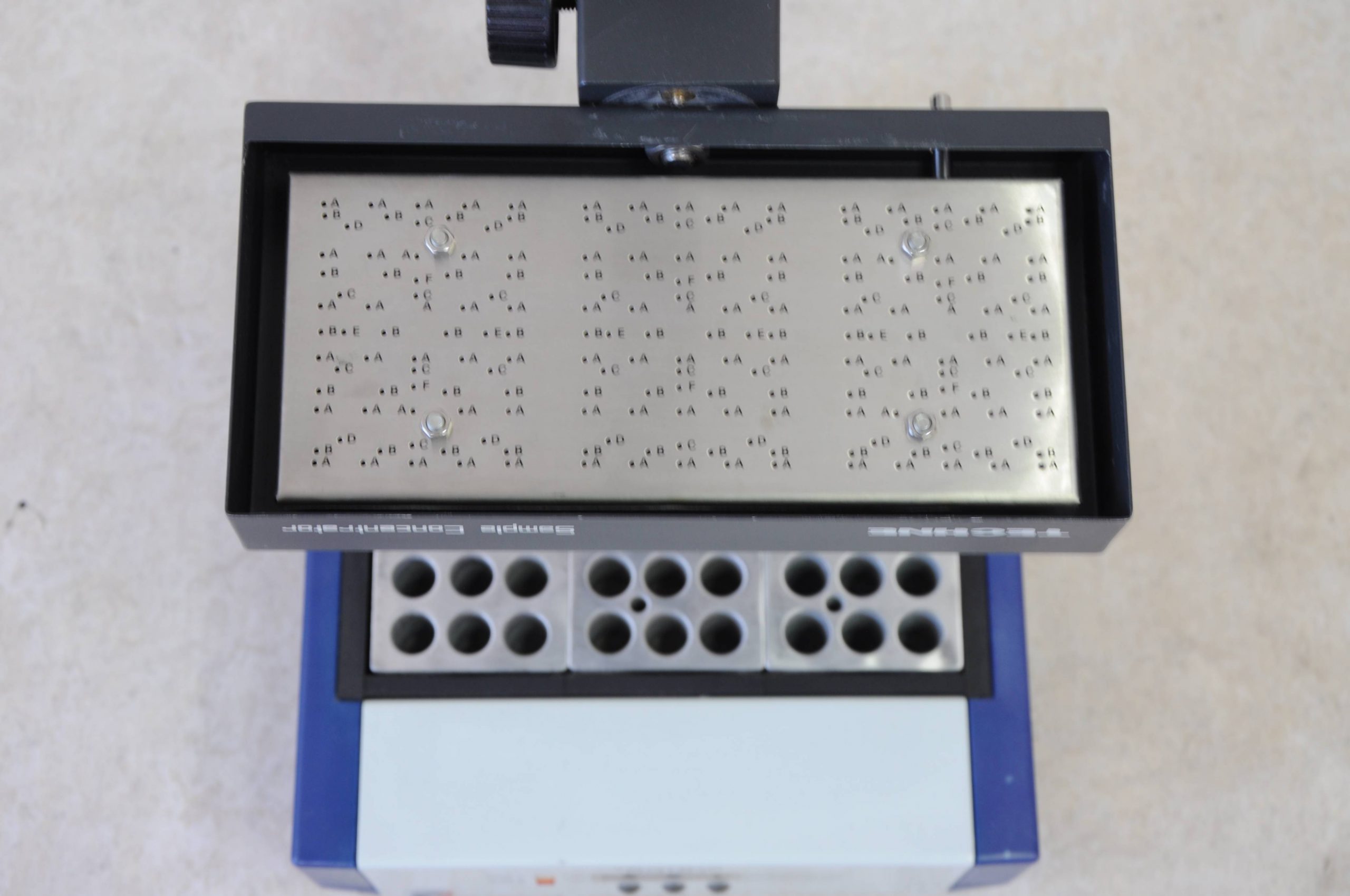

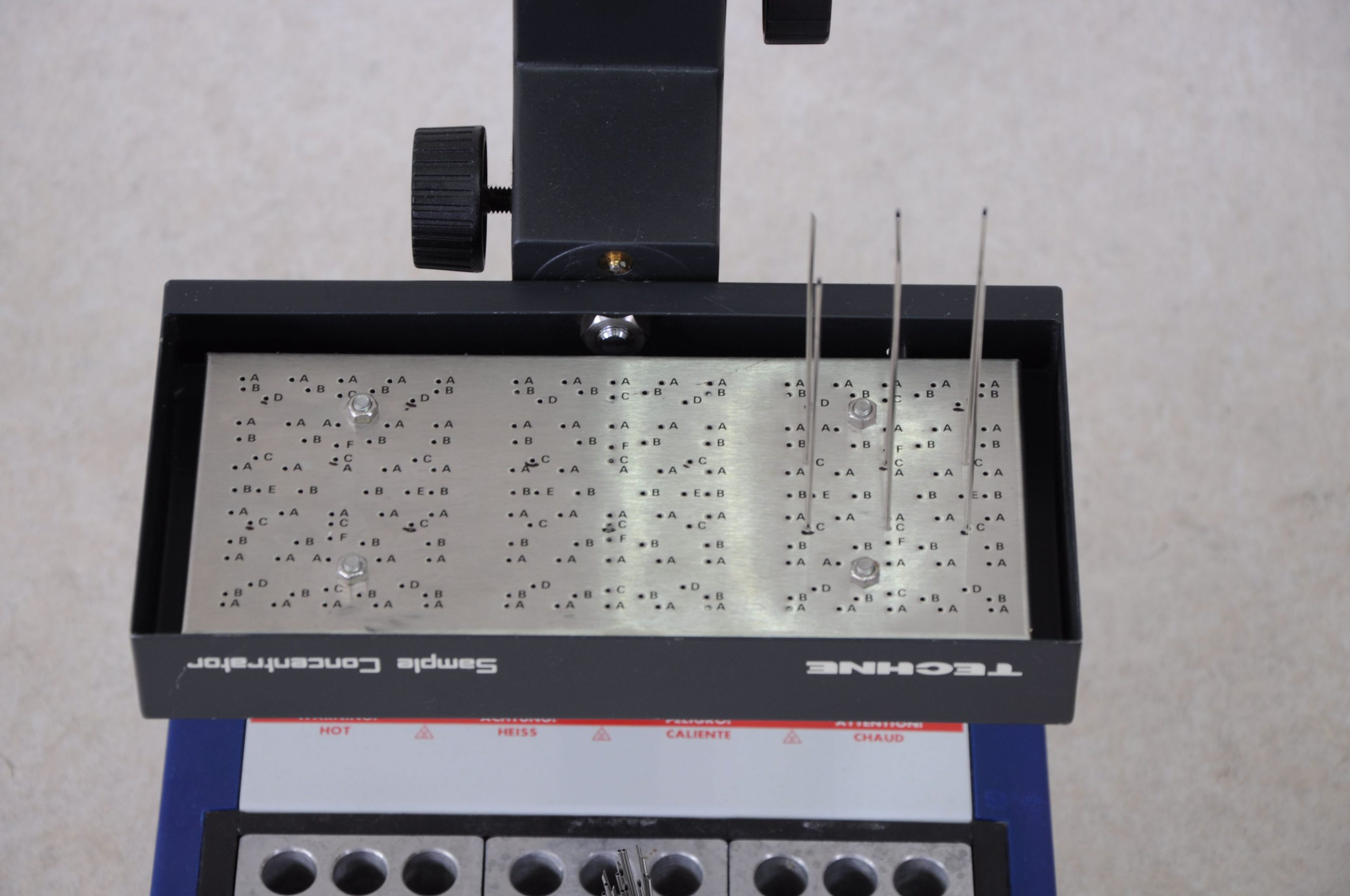

Sample Concentrator Dimensions (W) x (D) x (H): 24 x 27 x 53cm
