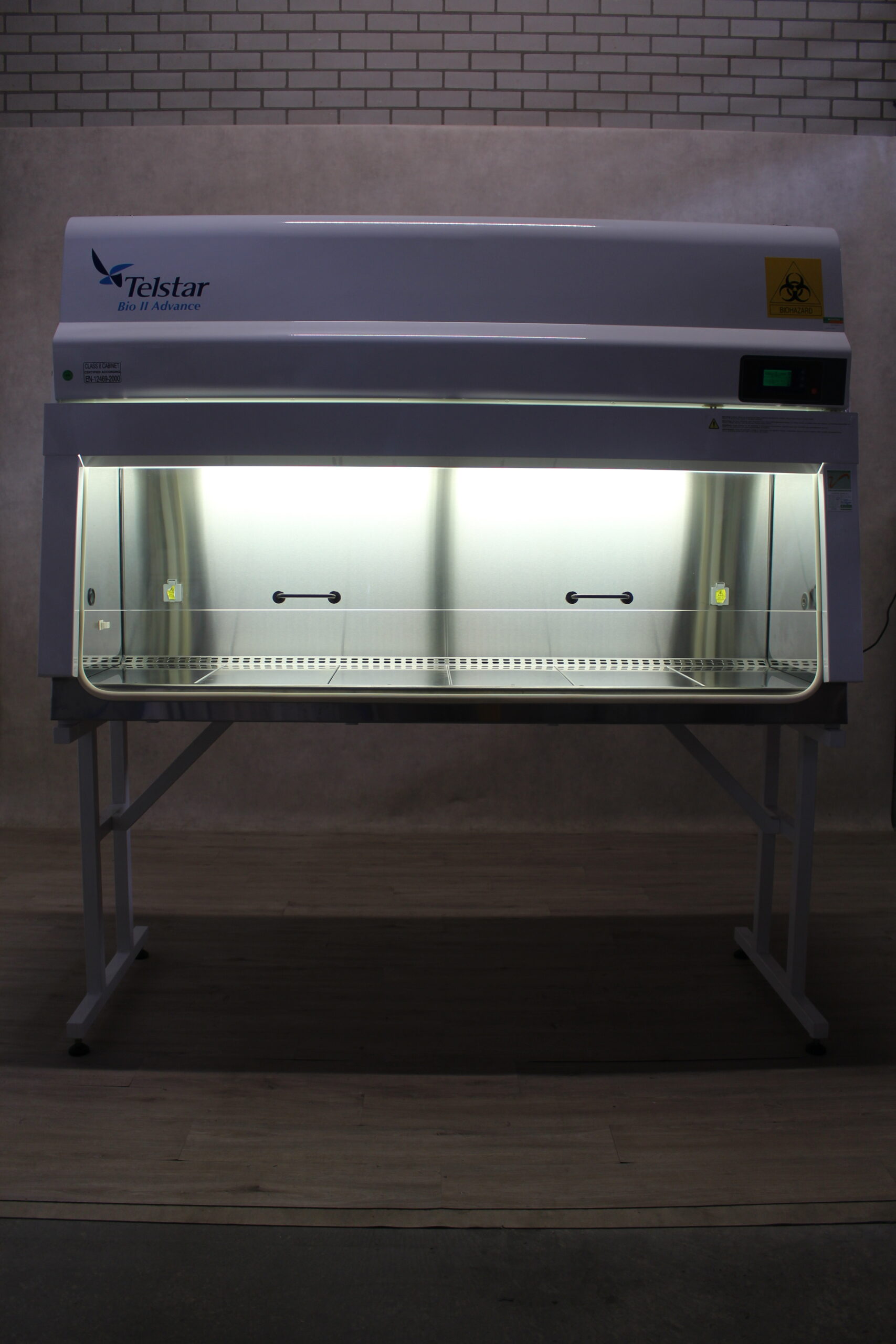

The Telstar Bio II Advance 6 Biological Safety Cabinet main purpose is to protect samples. The main screen of the cabinet shows the laminar flow rate and filter clogging. The cabinet has an Ecomode feature that allows it to run at low speed with one click to protect the sample while the operator performs other tasks. This saves energy and reduces noise and heat output. Other display features include airflow status information, a timer to program the fans and UV light daily, and two password levels (user and technical service). The cabinet also has audible and visual alarms to alert the operator to abnormalities, such as too high or too low a laminar flow rate or insufficient discharge rate. The cabinet has a laminar flow velocity of 0.35 m/s and an inlet air velocity of 0.5 m/s. The dimensions of the cabinet are 1964 x 759 x 1260 mm and the weight is 280 kg.
Laminar flow rate: 0.35 m/s
Laminar flow rate: 1310 m3/h
Inlet air velocity: 0.5 m/s
Exhaust flow rate: 564 m3/h
Illumination: > 1000 Lux
Noise: < 58 dBA
Vibration: < 0.005 mm RMS.
Filters: HEPA/ULPA H14 filters.
Digital display with PIN password for menu settings box.
2 electrical connections left/right.
Dimensions (WxDxH): 1964 x 759 x 1260 mm.
Internal dimensions (WxDxH): 1869 x 602 x 580 mm.
Support frame height: 900 mm
Weight: 280 kg.
