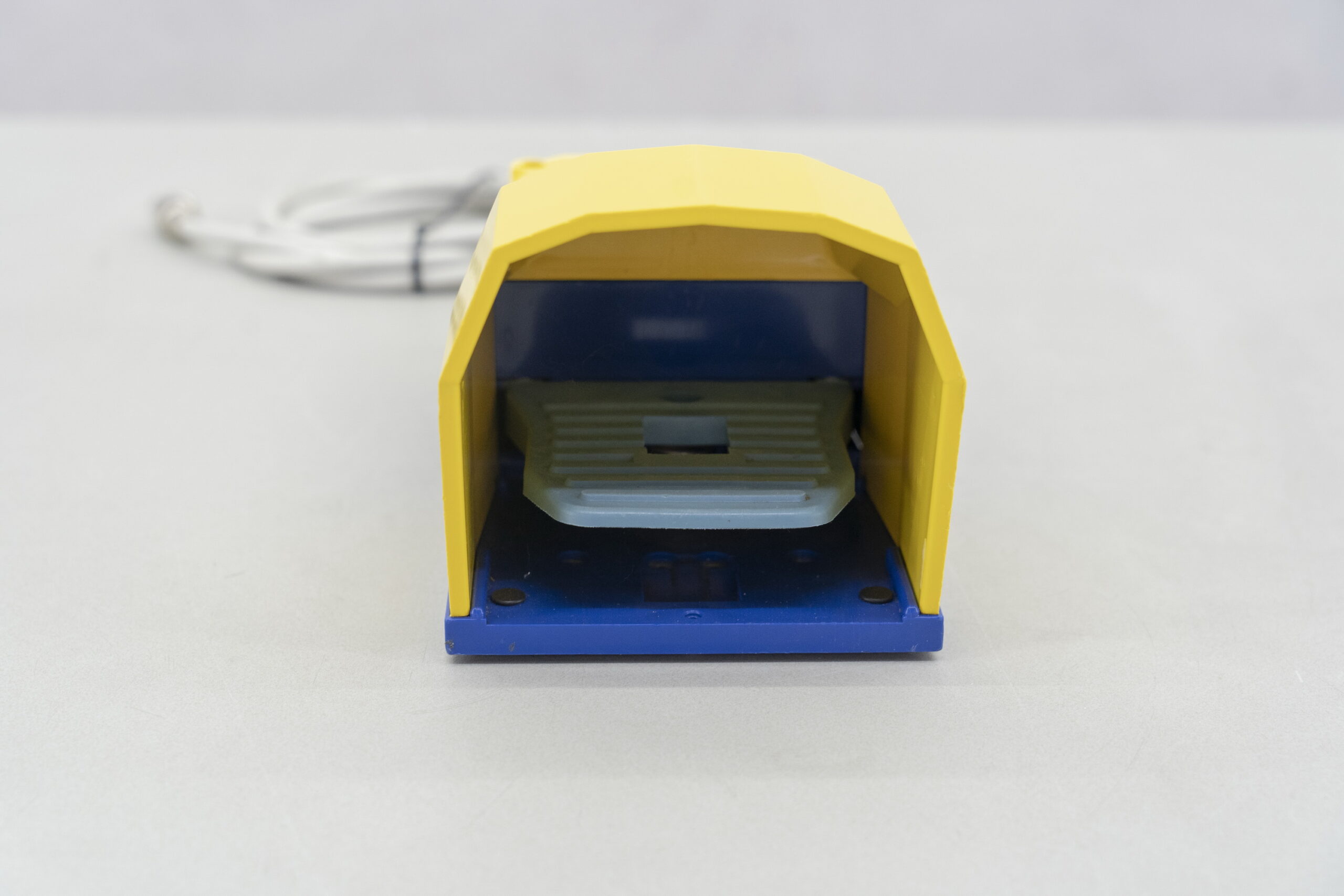

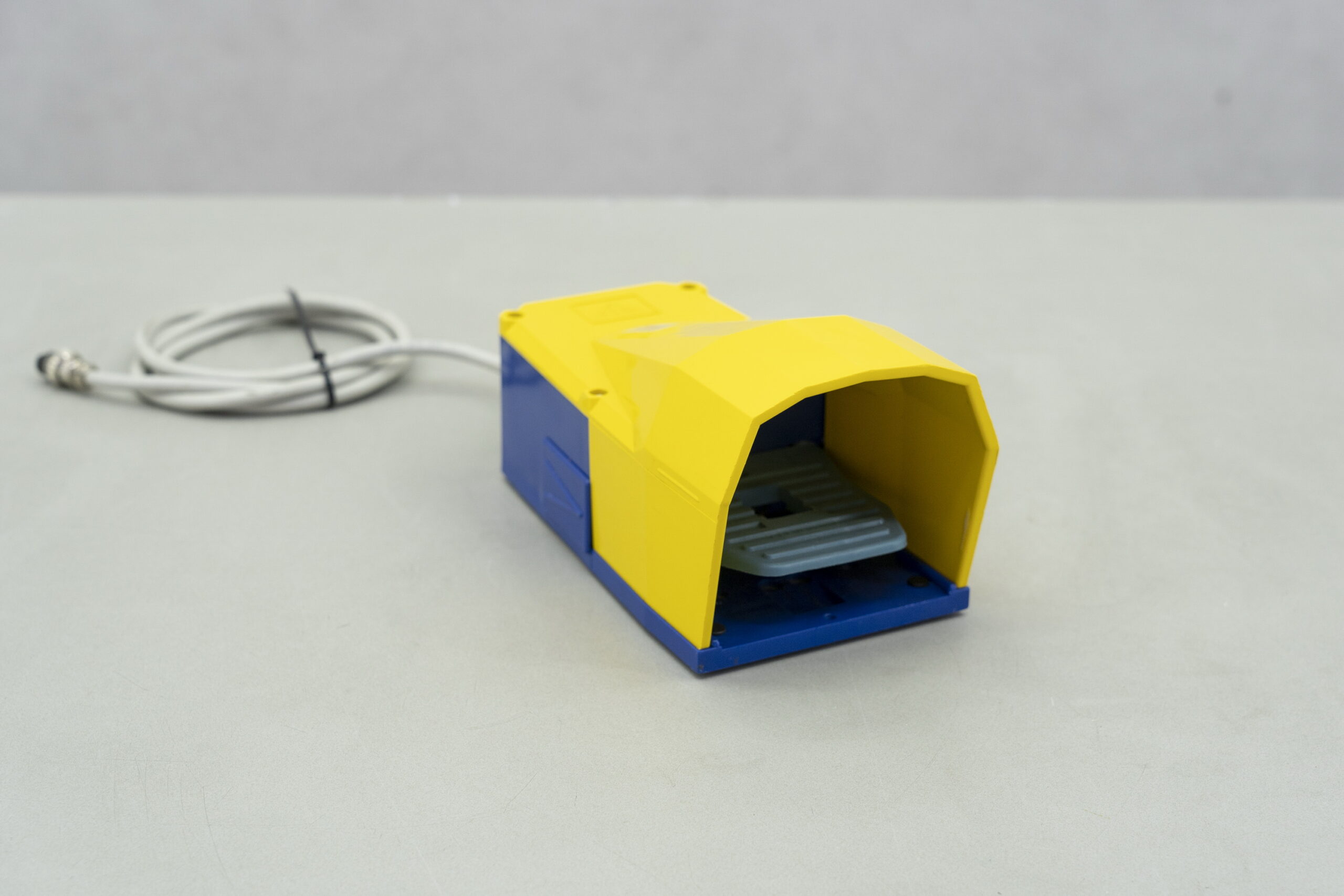

Footswitch for auxiliary control of industrial machines. It acts on the machine motor through a power interface, such as a contactor.
Features:
- The emergency stop mushroom pushbutton complies with standard ISO 13850.
- Positive opening NC contacts for safety functions.
- Mechanical life of switches: 1 million operations.
- IP protection degree: footswitch 6100/6200 is classified IP53.
- Extreme temperature resistance: -25°C to +70°C.
- Made of plastic material or die-cast aluminium.
- Materials and components are shock and wear resistant.
General specifications:
Conformity to Community Directives: 2014/35/UE 2006/42/CE
Conformity to Standards: EN 60204-1 EN 60947-1 EN 60947-5-1 EN 60529
Storage ambient temperature: -40°C/+70°C
Operational ambient temperature: -25°C/+70°C
Protection degree: IP 53
Insulation category: Class I
Cable entry: cable gland M20
Markings and homologations: CE
