This chemistry vacuum system has a wide range of applications like evacuation, evaporation and pumping of gases and vapors in chemical, biological and pharmaceutical laboratories. Some product features are:
- Outstanding chemical resistance and superior vapor tolerance.
- Exceptionally high performance even at low vacuum.
- Excellent ultimate vacuum even with gas ballast.
- Whisper quiet and very low vibration.
- Excellent environmental friendliness due to efficient solvent recovery.

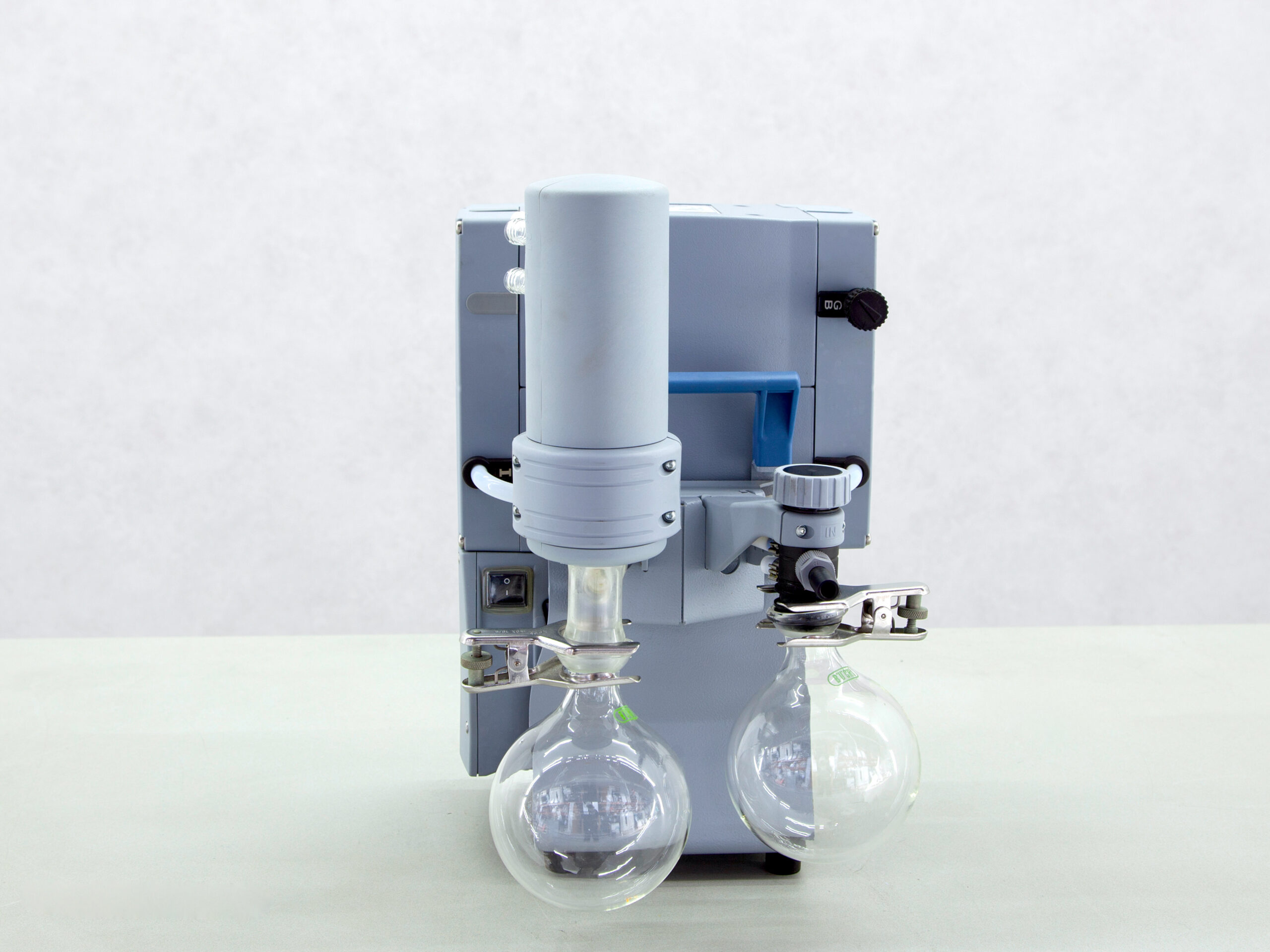

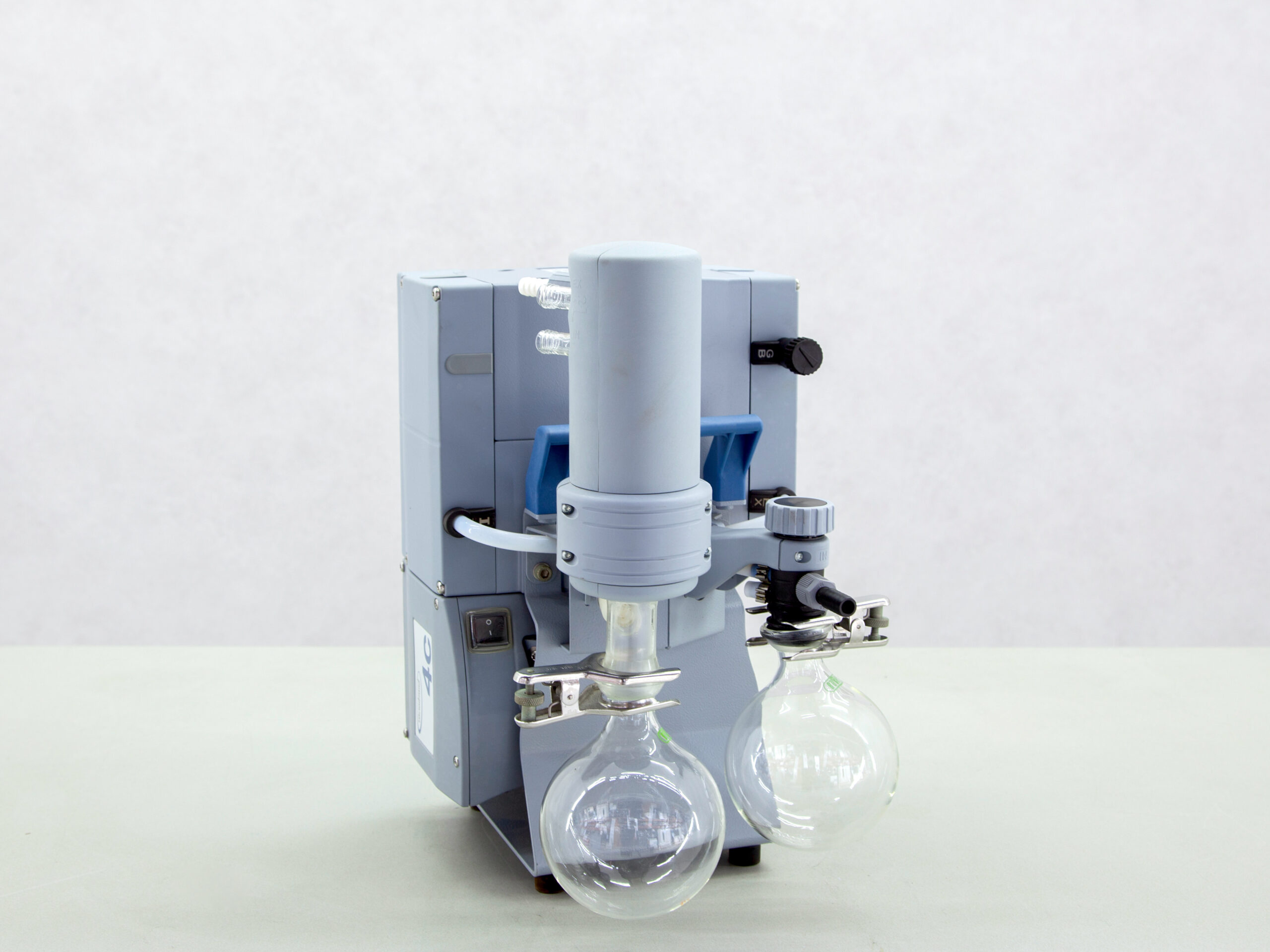

This system is ideal for high vacuum requirements with high boiling solvents. Typical applications are rotary evaporators and drying ovens. The separator at the inlet (AK), made of glass with a protective coating, retains particles and liquid droplets. The waste vapor condenser at the outlet (EK) is highly efficient and compact. The condenser enables near-100-percent solvent recovery, efficient recycling of solvents and active protection of the environment.
Technical specifications:
Voltage: 230 V
Current: 3 A
Power: 700 W
Ultimate vacuum (abs.) without gas ballast in mbar: 1.5 mbar
Ultimate vacuum (abs.) with gas ballast in mbar: 3 mbar
Max. pumping speed 50 Hz: 3.4 m3/h
Outer dimensions (B) x (D) x (H): Â 243 x 326 x 402 mm
Weight: Â 17,3 kg
