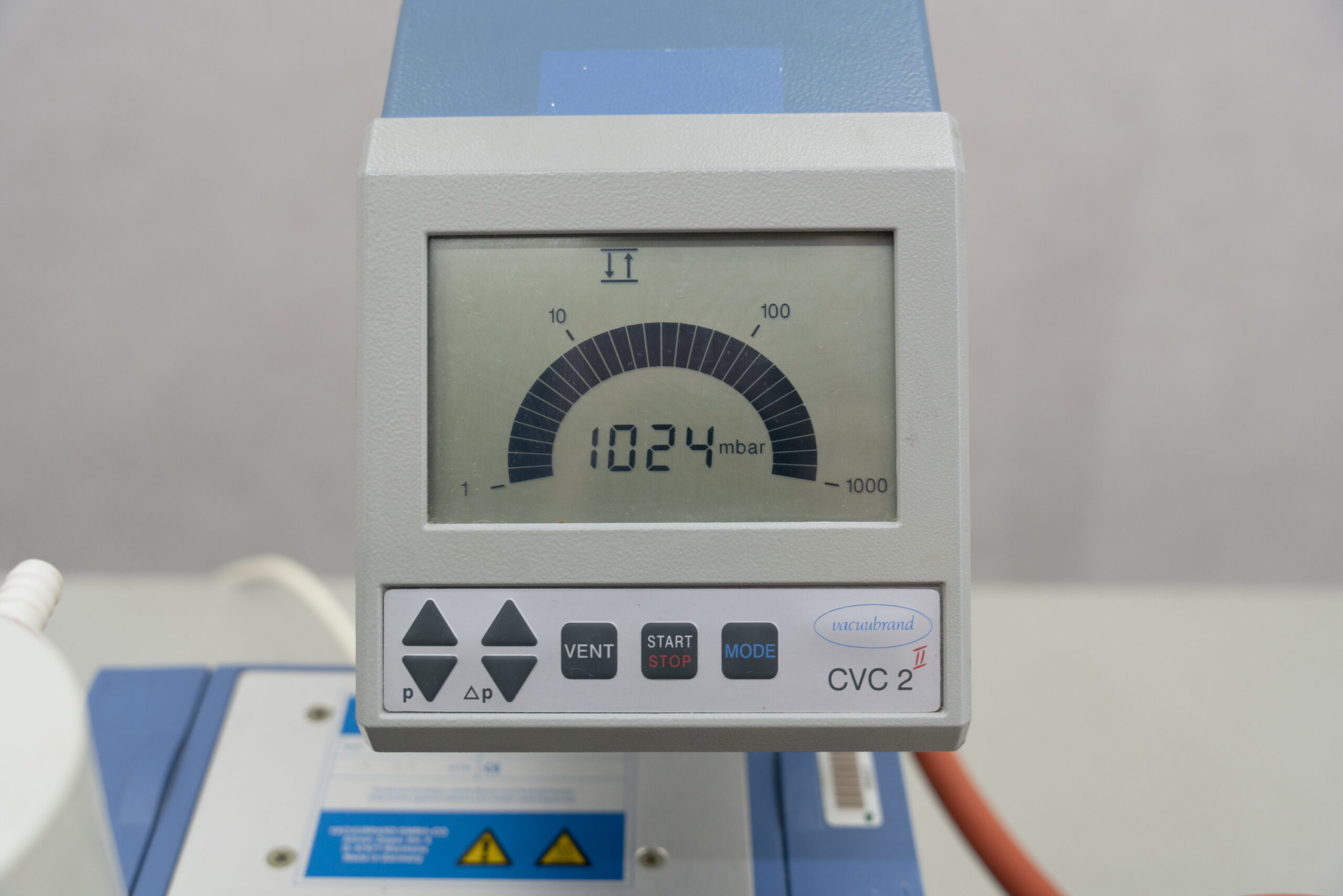

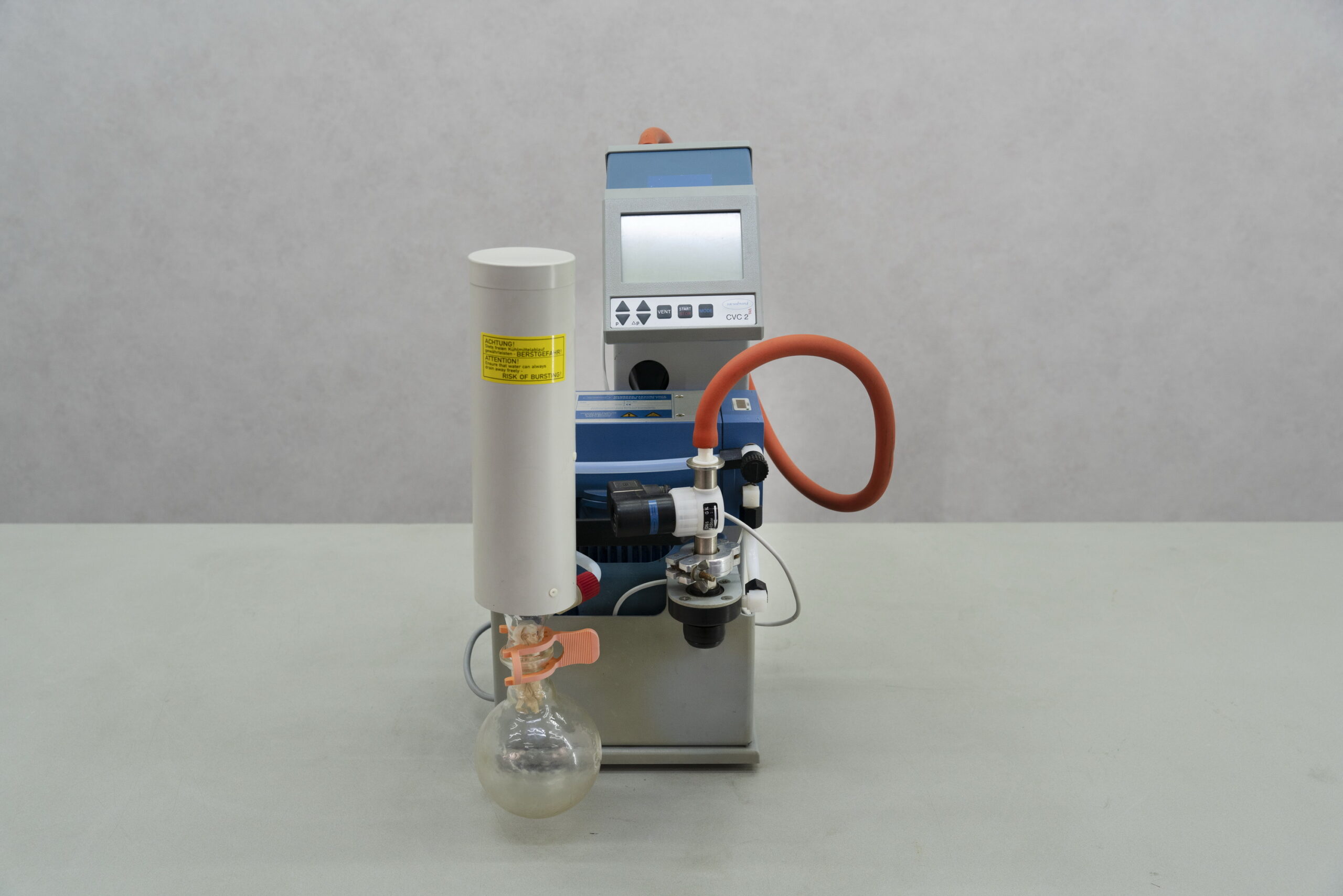

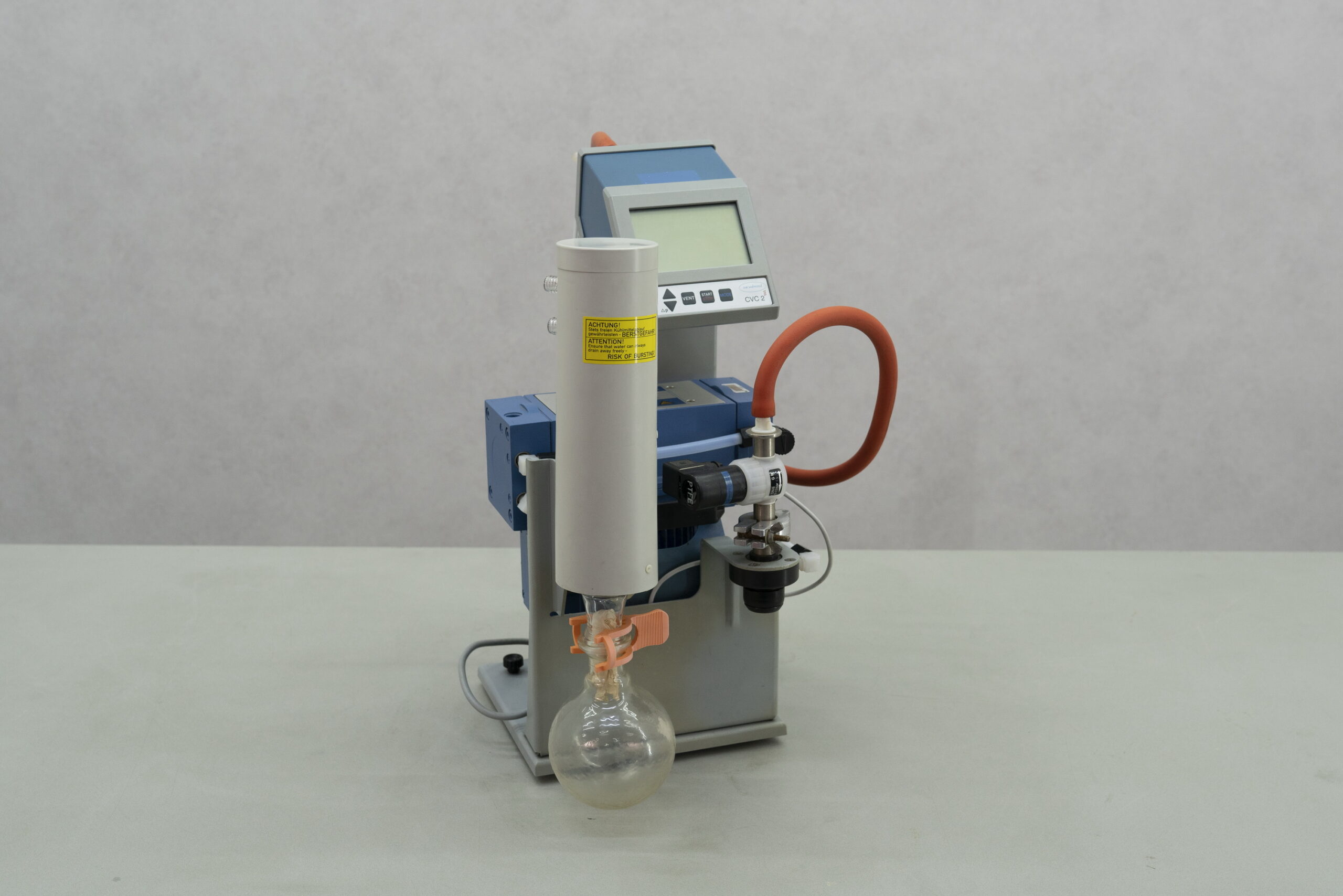

The Vacuubrand MZ-2C diaphragm pump with CVC2 controller has excellent chemical resistance and superior vapor tolerance. Expect high performance even at low vacuum levels optimized vacuum even with gas ballast for condensate cleaning.
Technical specifications:
Voltage: 230 V
Rated engine speed at 50/60 Hz 1500/1800 min
Power: 0.18 kW
Mains frequency: 50-60 Hz
Max. pump speed 50 Hz 2 m3/h
Max. pump speed 60 Hz 1.4 cfm
Ultimate vacuum 7 mbar / 5 torr
Ultimate vacuum with gas ballast 12 mbar / 9 torr
Ambient temperature (operating) 10 – 40 °C
Ambient temperature (storage) -10 – 60 °C
Max. back pressure (abs.) 1.1 bar
Inlet connection and Outlet connection Hose tail DN 8-10 mm
Coolant connection 2 x hose tail DN 6-8 mm
Protection class IP 40
External dimensions (W) x (D) x (H): 243 x 326 x 402mm
Weight: 14.2kg
