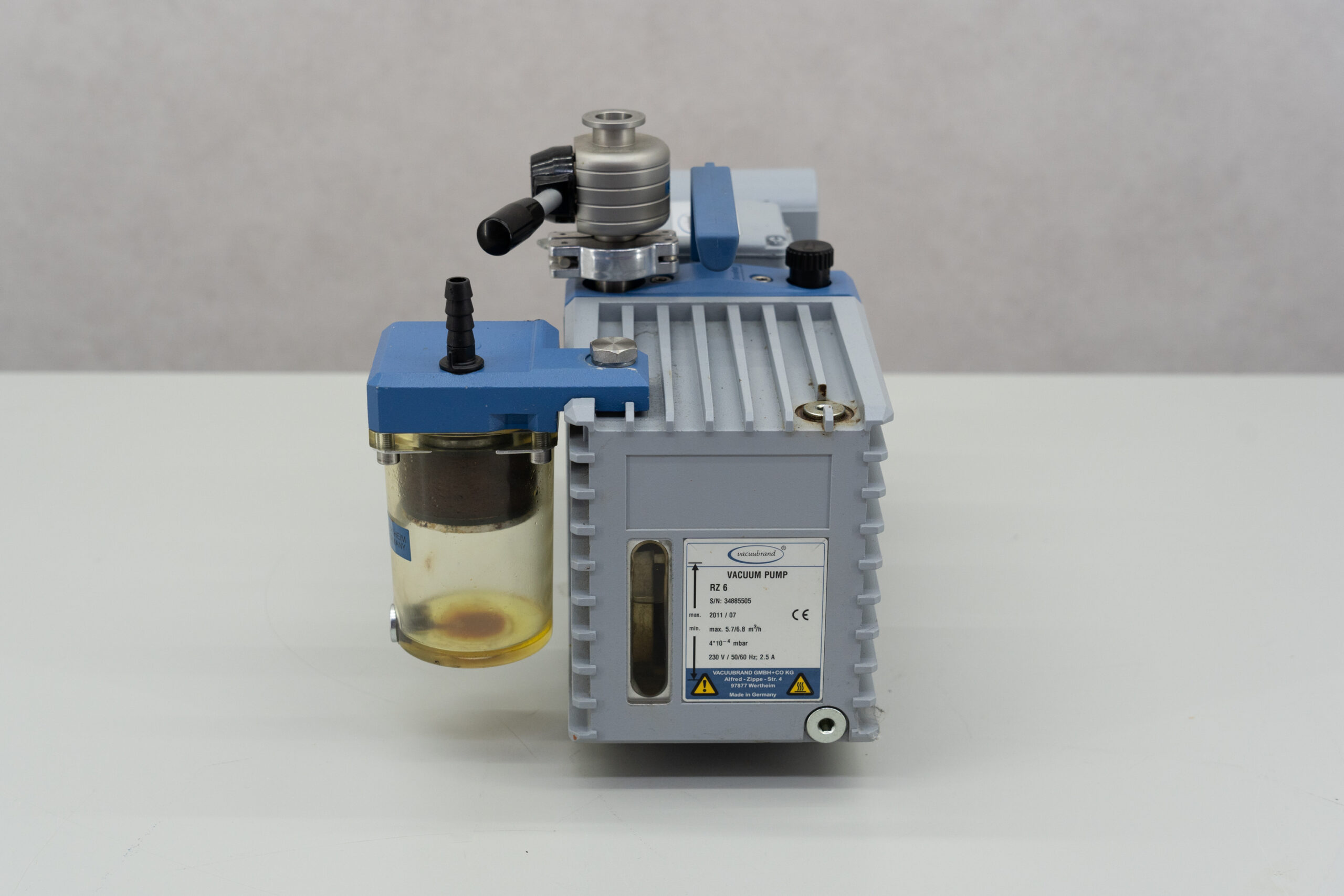

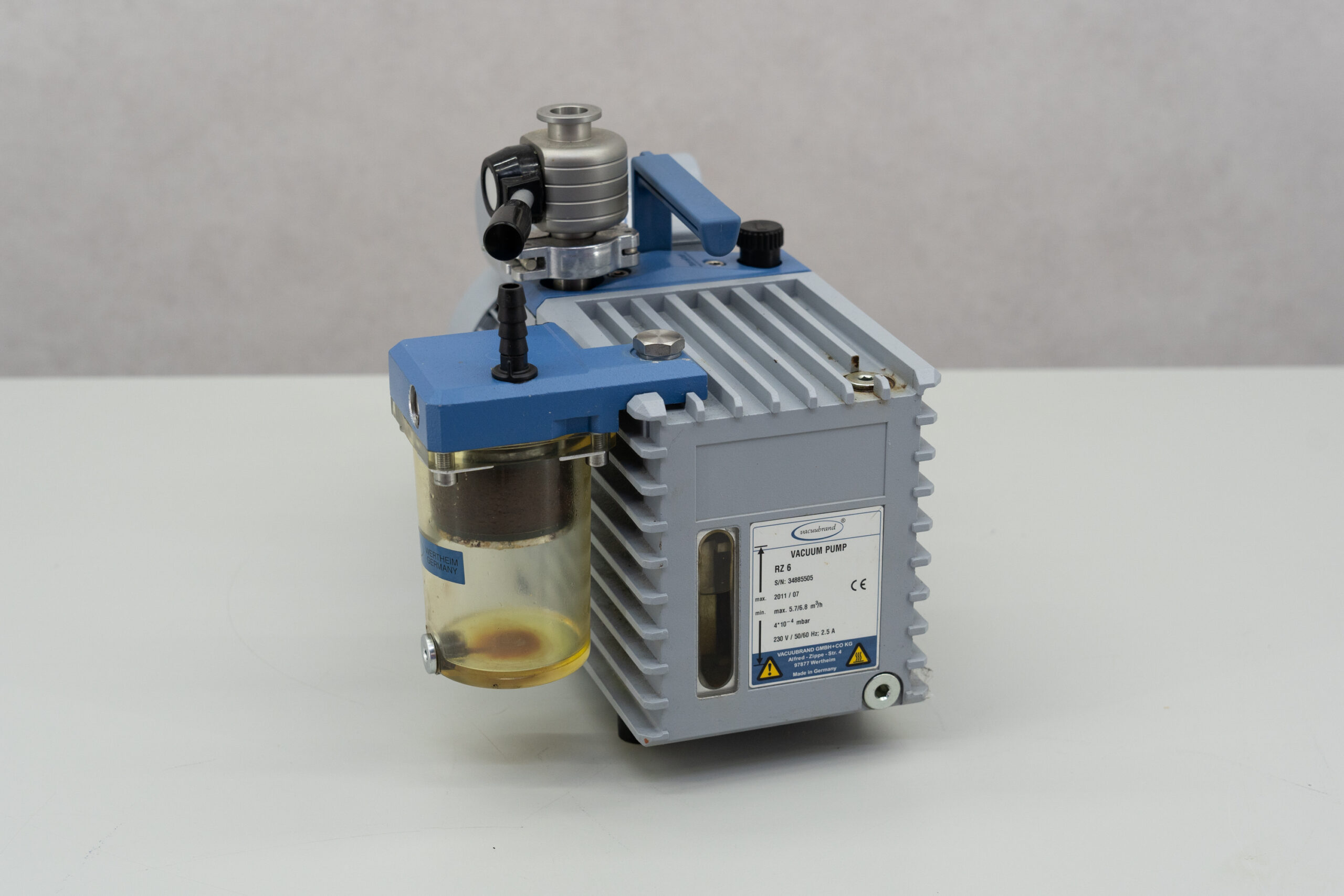

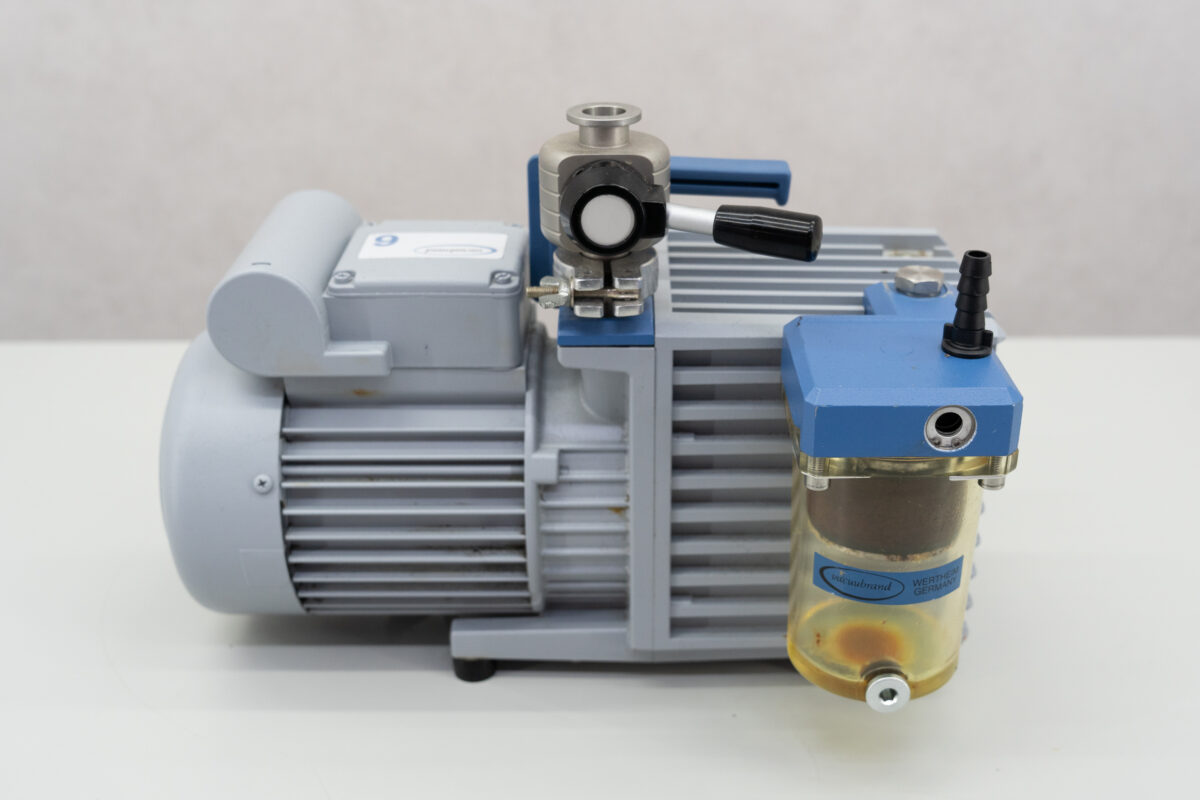

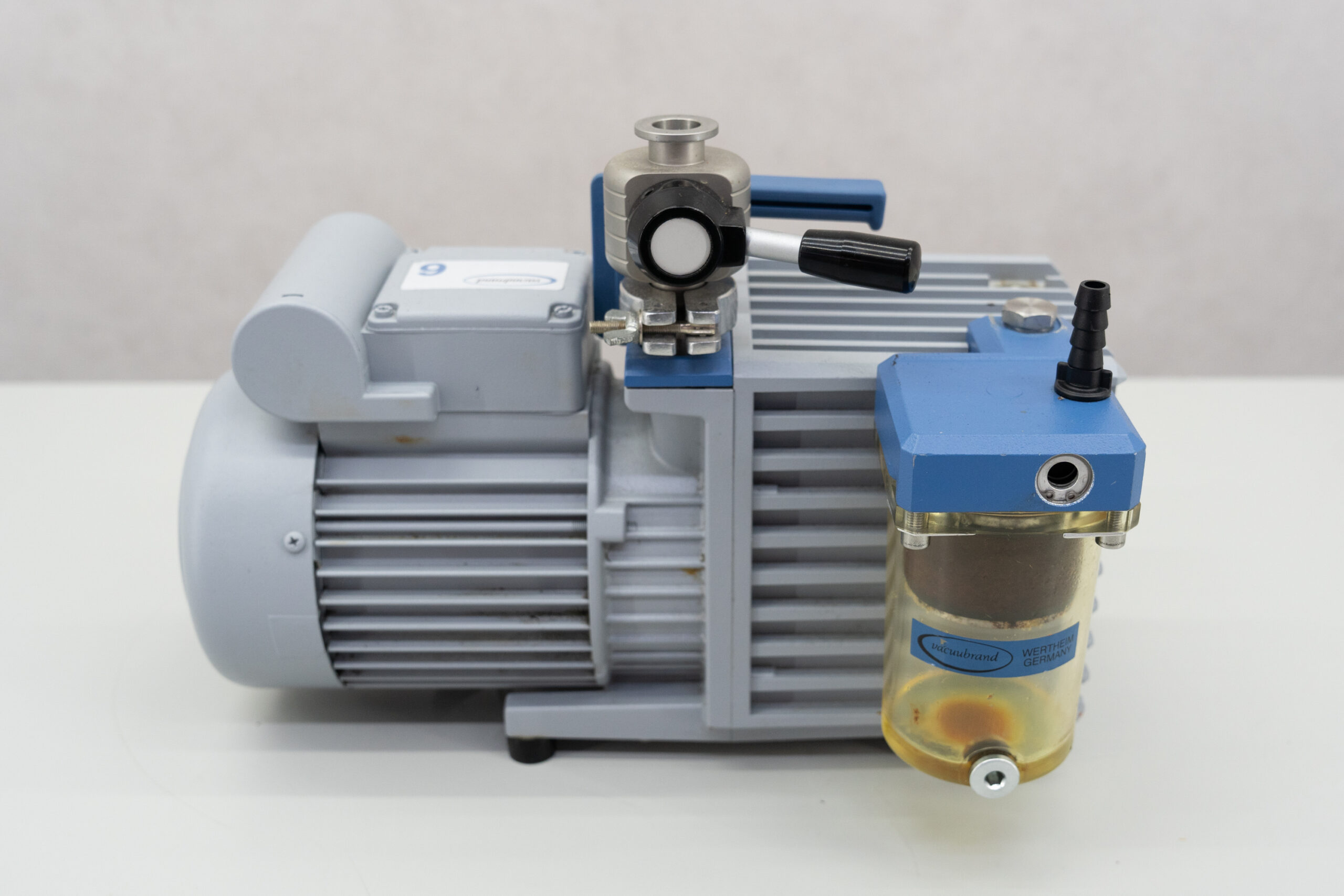

The Vacuubrand RZ6 Rotary vacuum pump is designed for use where diaphragm pumps cannot provide sufficient vacuum depth. The RZ6 has a free air capacity of 113L/min. and a KF16 small flange inlet. For use with freeze dryers, bench top centrifugal concentrators or other low temperature evaporations of high boiling point solvents.
Technical specifications:
Voltage: 230 V
Current: 2.5A
Includes: GKF 1000i cold trap, oil mist filter, valve, T-connection, gas ballast
Speed: 1500 – 1800 rpm
Noise level: 50 dB(A)
Storage temperature: -10°C to +60°C
Temperature Max.: 40°C
Enclosure rating: IP40
External dimensions (W) x (D) x (H): 38 x 23 x 33 cm
Weight: 16 kg
