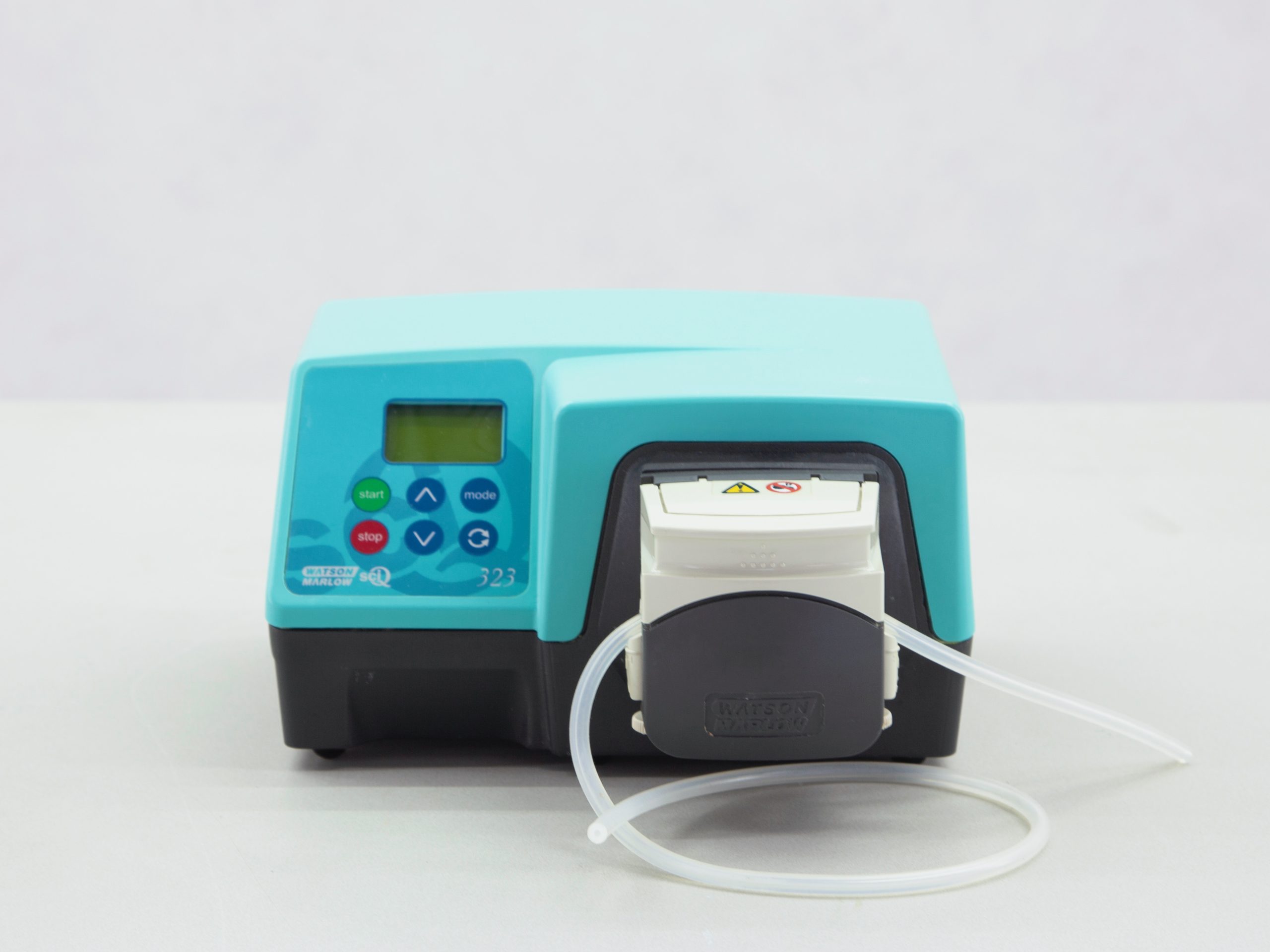

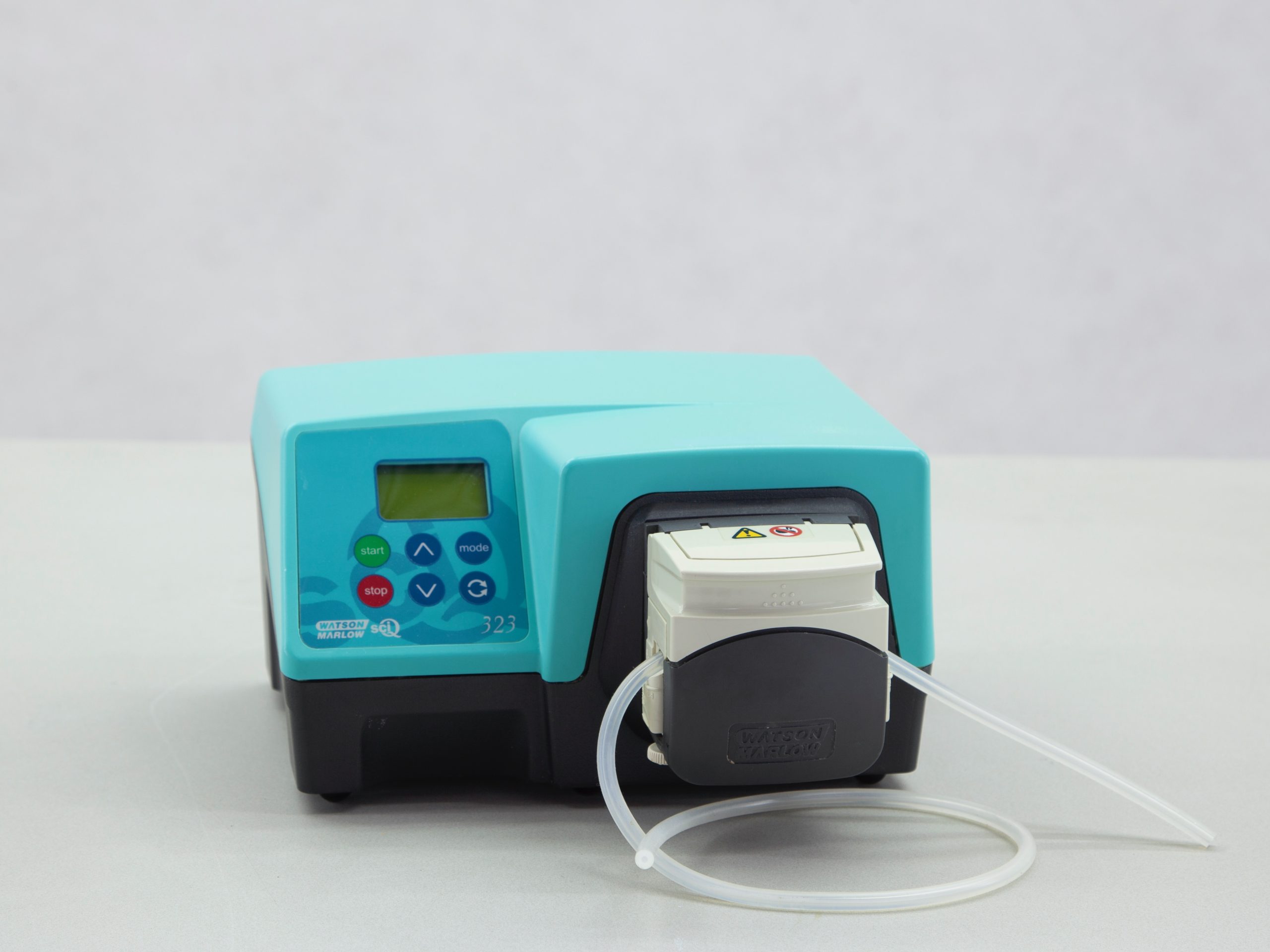

The Watson Marlow type 323U hose pump is particularly suitable for pumping corrosive, abrasive and viscous liquids without damaging the pump. The Watson Marlow 323U is suitable for use in the pharmaceutical and biopharmaceutical industries.
Technical specifications
Voltage: 100-120 / 220-240 V
Current: 50/60 Hz
Power: 100 W
Outer dimensions (W) x (D) x (H): 23 x 23 x 12 cm

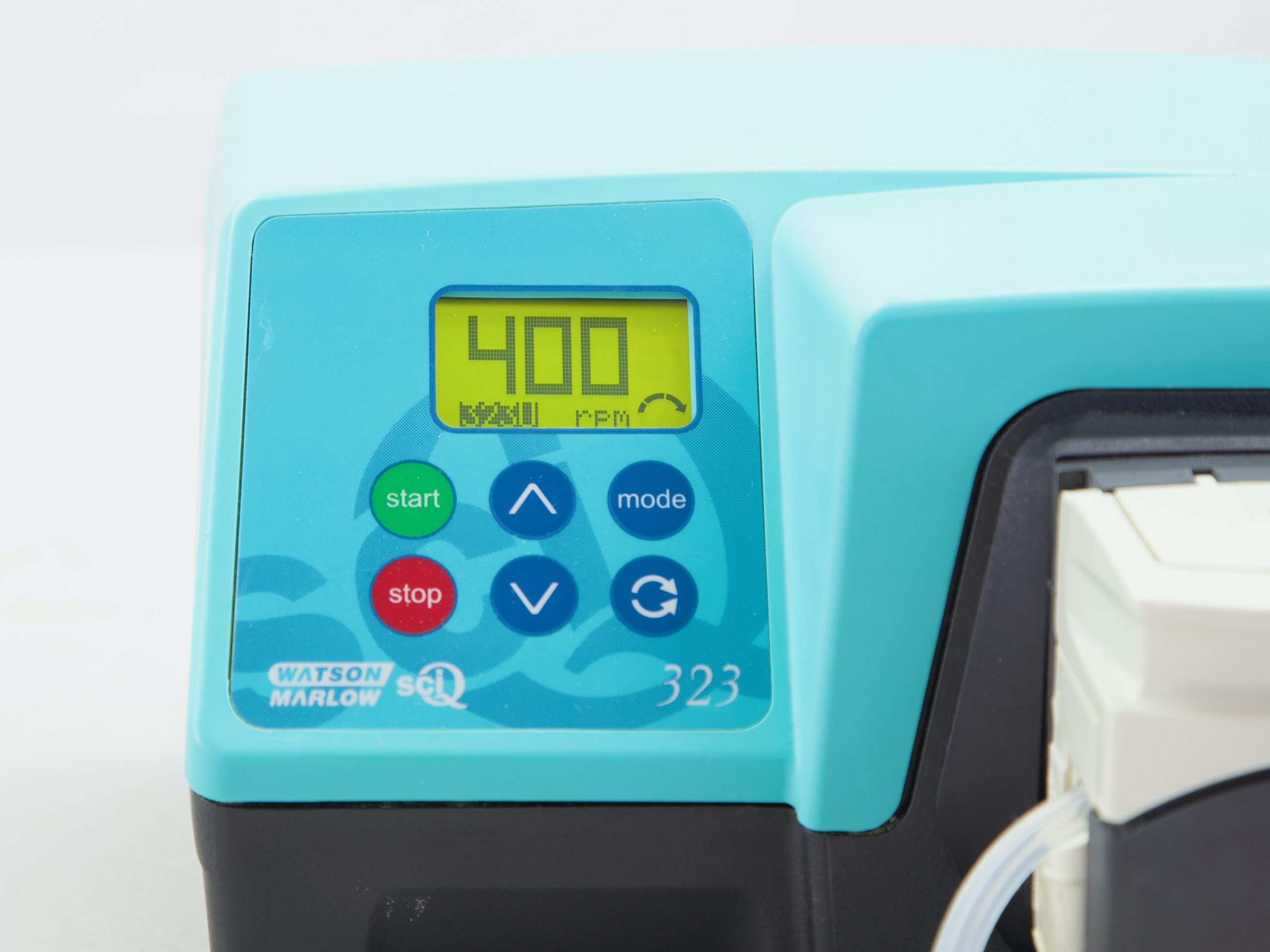

Speed: 3 to 400 rpm
Pumphead type: 313D Pumphead 3 roller
Pump Head: 1.6mm WT Tubing
Protection: IP 31
Pump head material: – Nylatron
Number of rolls: 3
Operating temperature: from 4°C to 40°C
Supply pressure: max 2 bar
Output:
Hose Ø 1.6 mm – 0.81 to 108 ml / min
Hose Ø 3.2mm – 3.0ml to 400ml/min
Hose Ø 4.8 mm – 6.6 to 880 ml / min
Hose Ø 6.4mm – 11-1440 ml/min
Hose Ø 8.0mm – 15-2000 ml/min
