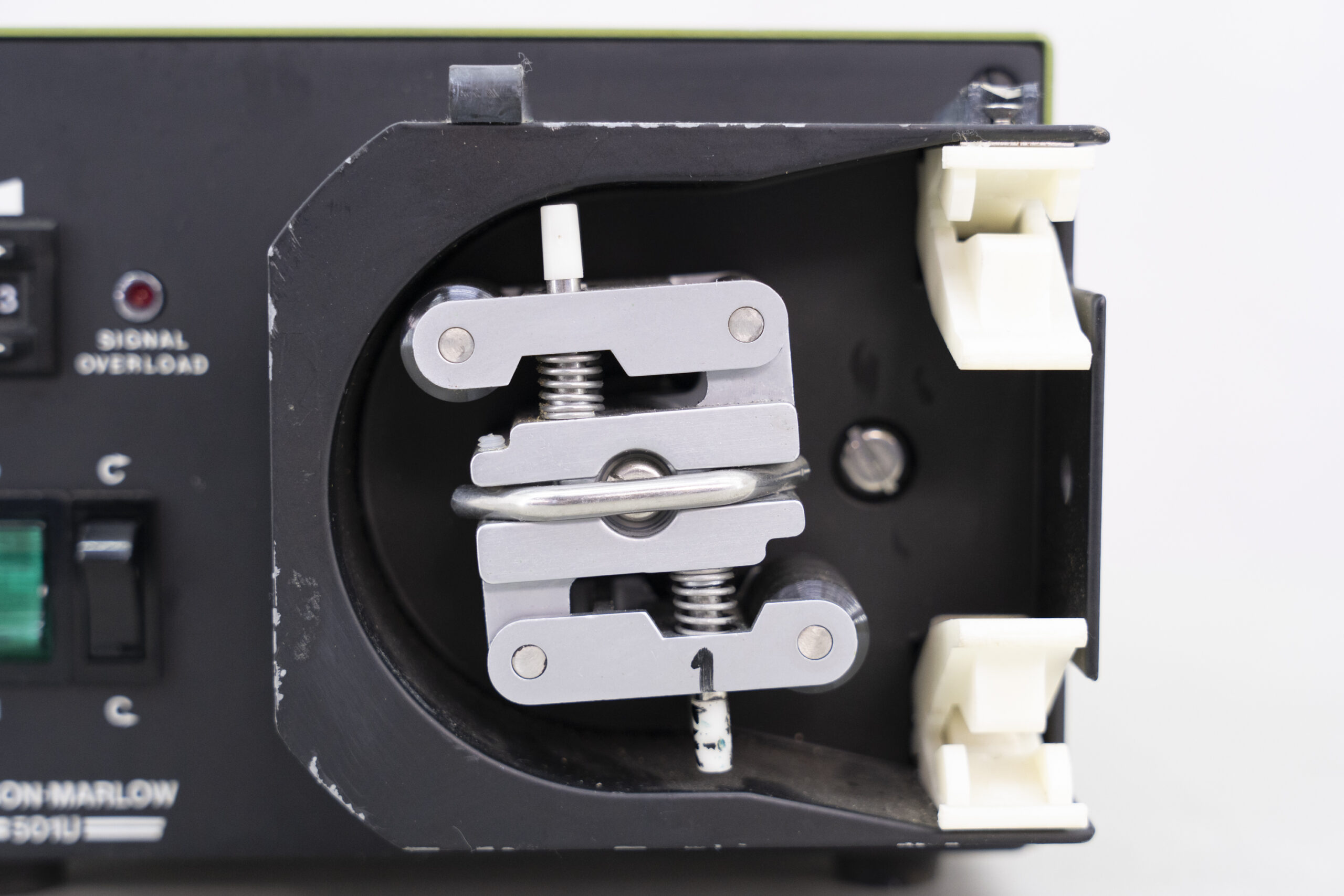

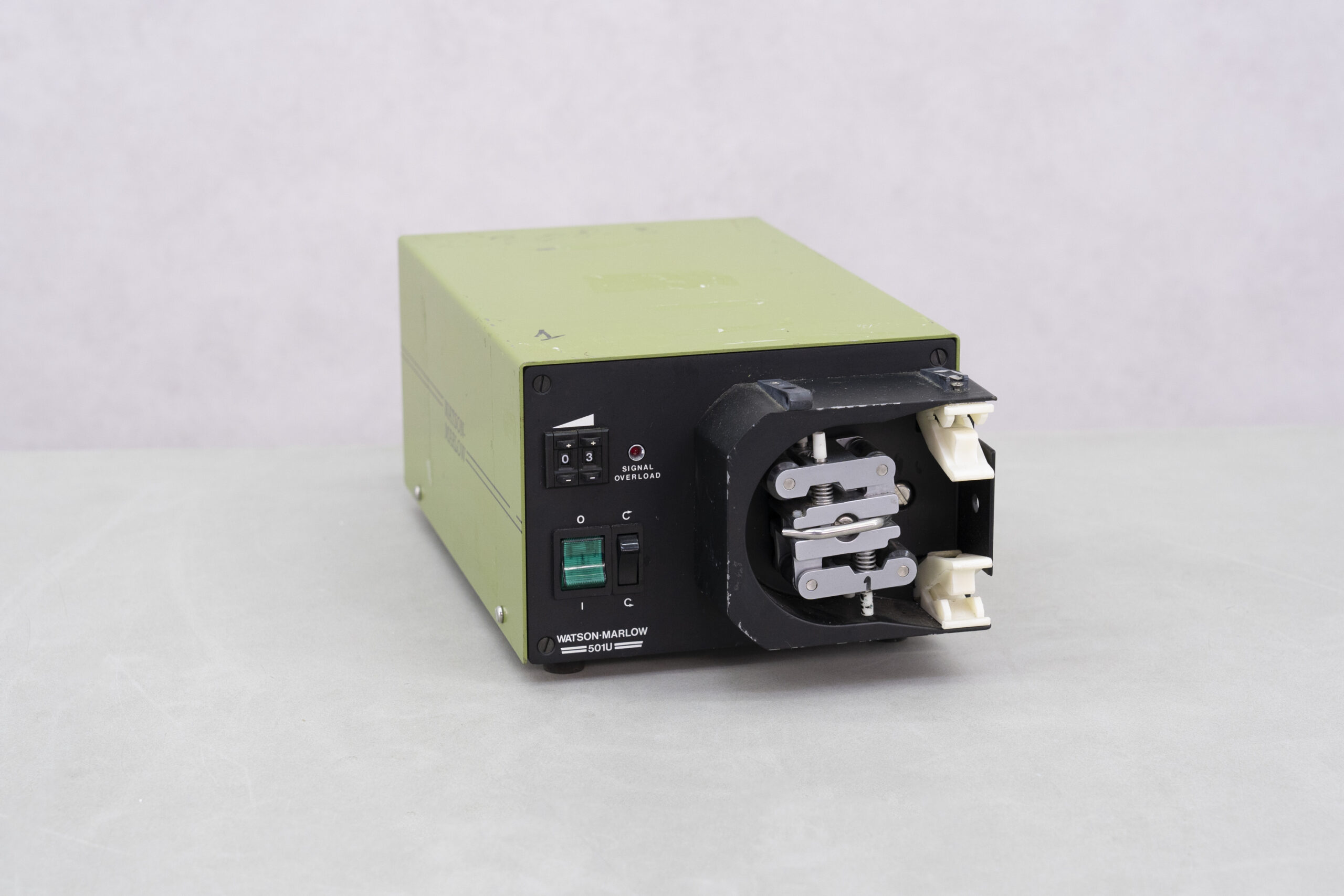

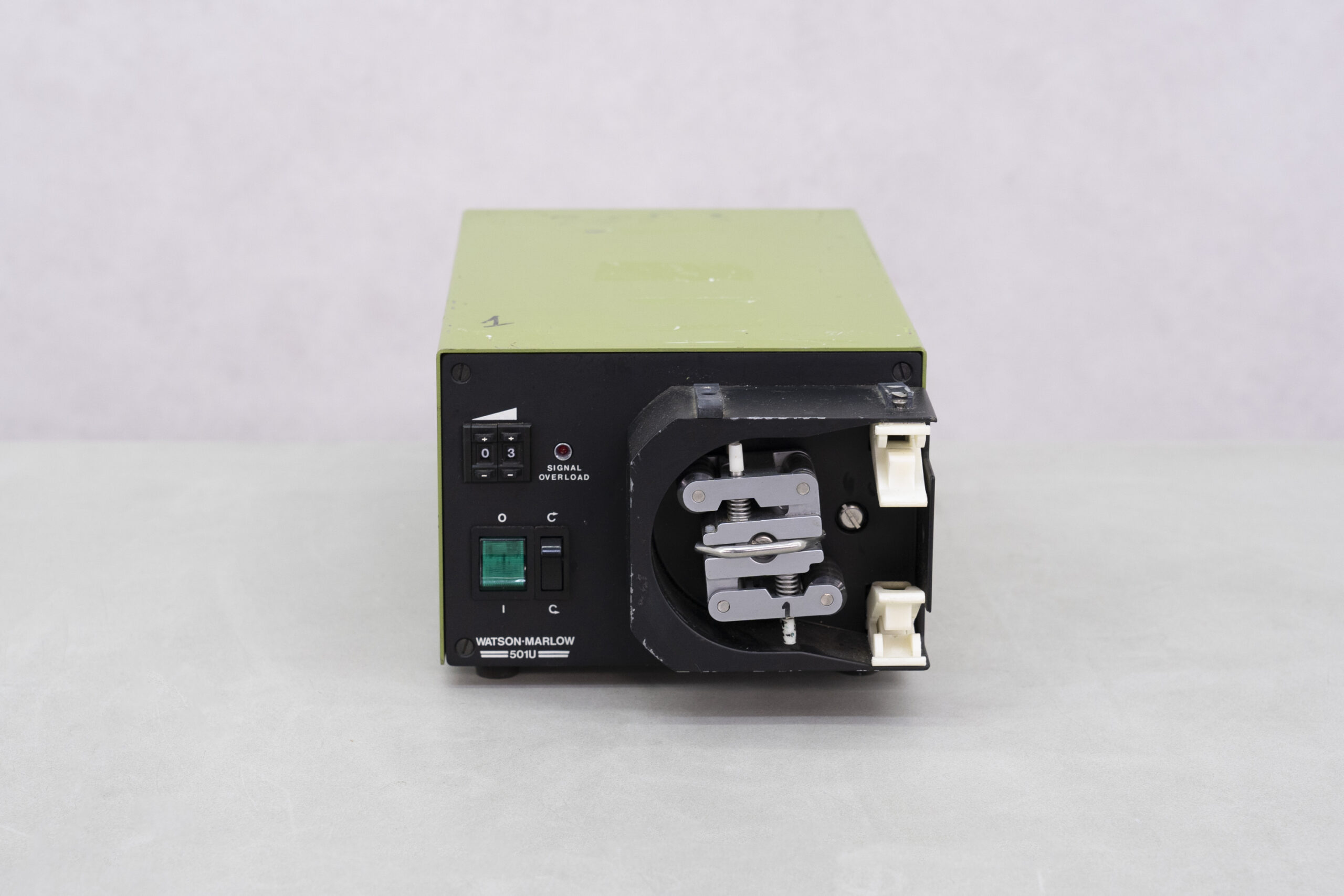

The Watson Marlow 501U Peristaltic Pump can be operated manually, via the front panel mounted potentiometer or via a remote potentiometer. It is suitable for pumping sterile liquids such as blood in a heart-lung machine, or aggressive liquids composed of substances with certain characteristics, such as corrosive, abrasive, shear-sensitive, highly viscous, acids and coatings and adhesives, sludge and other wastewater .
Technical specifications:
Voltage: 110-240V
Current: 0.8A
Flow rates:
Tube Inner Diameter 0.5mm: 0.4-7.1ml/min
Tube Inner Diameter 0.8mm: 1.3-21ml/min
Tube inner diameter 1.6 mm: 4.2 – 73 ml / min
Tube inner diameter 3.2 mm: 19 – 320 ml / min
Tube inner diameter 4.8mm: 39-700ml/min
Tube inner diameter 6.4 mm: 64 – 1080 ml / min
Tube inner diameter 8.0 mm: 96 – 1820 ml / min
Maximum speed: 170 rpm
Ambient Environment: 0°C – 35°C
External dimensions (W) x (D) x (H): 35 x 20 x 15 cm
Weight: 6kg
